2 Way RF Signal Tap | 16 dB | 5-2400 MHz | 30VDC 2A by Jonsa
RF signal tap with 16 dB gain and 5-2400 MHz range—ideal for telecommunications and broadcasting. Built for optimal signal distribution, with 30VDC 2A power pass and solder shielded housing.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

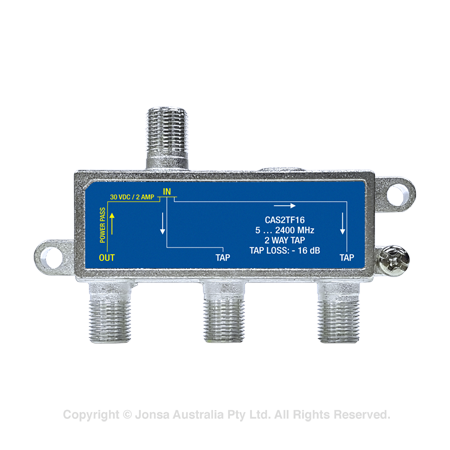

Product Name/Title: TAP 2 WAY 16 dB 5...2400 MHz 30VDC 2AMP
Brand: Jonsa
SKU: CAS2TF16
Alternatively Known As: RF Tap, Signal Tap, Coaxial Tap
Technical Specifications
- Insertion Loss IN-OUT: 5 … 40 MHz - 12 dB = ≤ 2.2 | - 16 dB = ≤ 1.5 | - 20 dB = ≤ 1.5
- Isolation TAP-TAP: ≥ 30 dB for 5 ... 40 MHz
- Return Loss OUT: ≥ 10 dB for 5 ... 40 MHz
- Impedance: 75 Ω
- Housing: Solder Shielded Bottom Plate
- Mounting Screws: ± PM 4 x 18 A3 Nickel-Plated, 2 pcs
- Power Pass: Output > Input, 30 VDC 2 Amp
- Earthing Terminal: Yes
- Dimensions (H x L x W): 50mm x 100mm x 100mm
- Weight: 0.5 kg
Key Features
- Insertion Loss IN-OUT: 5 … 40 MHz - 12 dB = ≤ 2.2 | - 16 dB = ≤ 1.5 | - 20 dB = ≤ 1.5
- Isolation TAP-TAP: ≥ 30 dB for 5 ... 40 MHz
- Impedance: 75 Ω
- Power Pass: Output > Input, 30 VDC 2 Amp
Professional Installation Requirements
- Professional installation by a qualified technician is recommended for optimal performance.
Applications
- Telecommunications: Suitable for various RF applications.
- Broadcasting: Ideal for signal distribution in broadcasting systems.
Standards & Compliance
- Complies with AS/NZS 60950 for safety and performance standards.
Environmental Benefits
- Designed to minimize signal loss, enhancing energy efficiency in signal transmission.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Jonsa TAP 2 WAY 16 dB 5...2400 MHz is available now for immediate purchase. Ideal for telecommunications and broadcasting applications.
