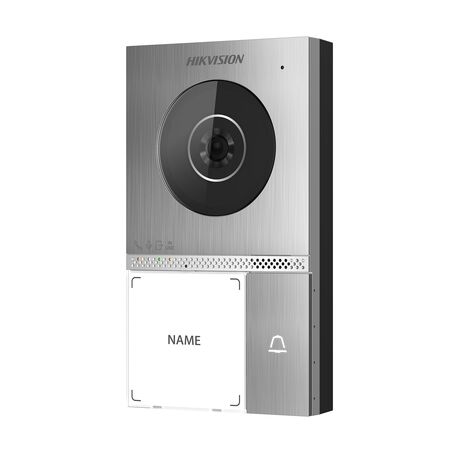

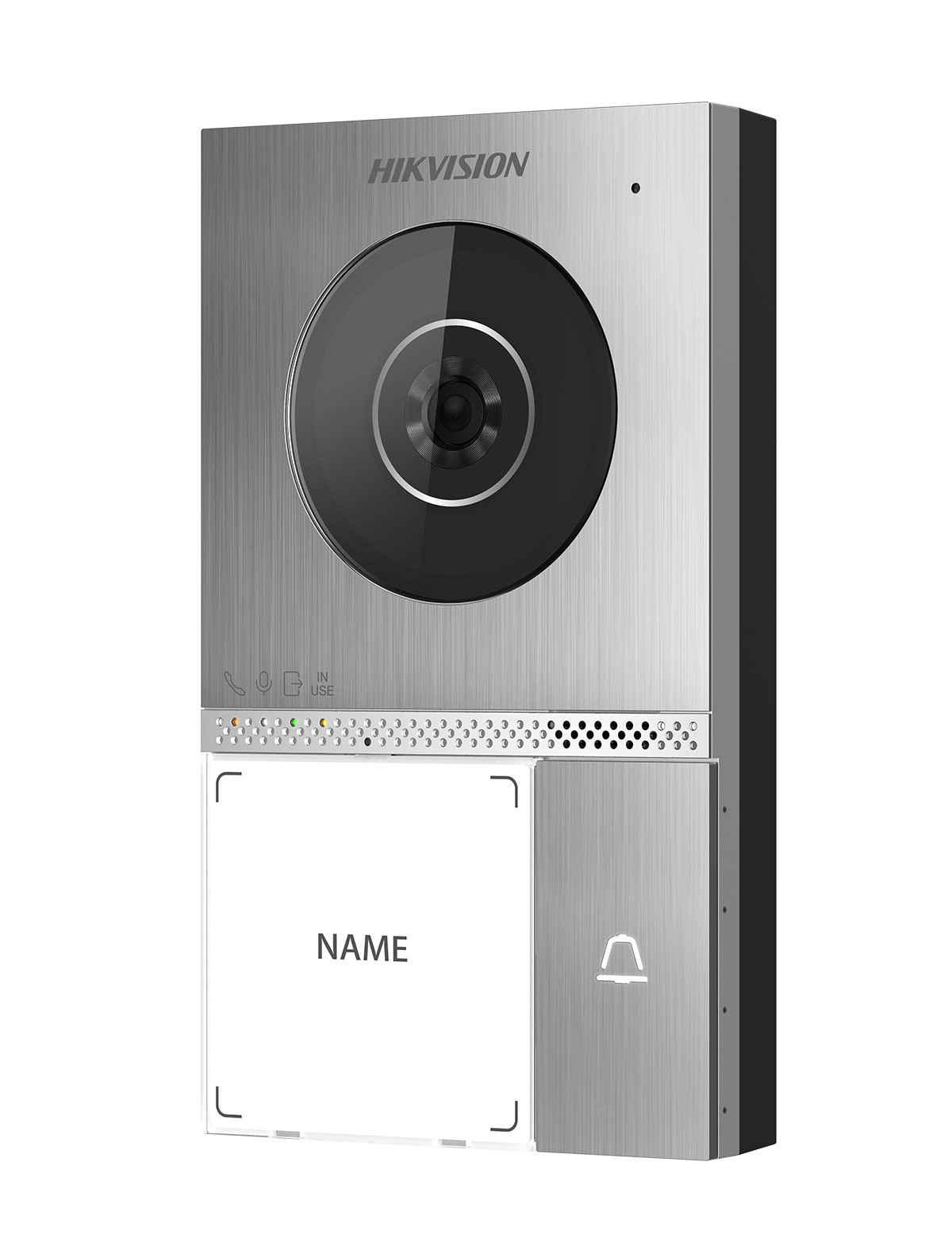

2 Wire Door Station Stainless Steel Hikvision
Hikvision 2 wire door station features a stainless steel finish. Ideal for intercom installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision 2-Wire Video Intercom Door Station, Hikvision Stainless Steel Video Doorbell Station, DS-KV8103Y-IMPE2
Technical Specifications
- System Type: 2-wire analogue video intercom
- Camera: 2 MP HD colour camera with automatic supplemental illumination
- Viewing Angle: 140° horizontal, 85° vertical
- Video Compression: H.264
- Audio: Two-way communication with noise suppression and echo cancellation
- Door Lock Control: Two lock relay outputs; 12 V power output for one electric lock
- Inputs: Two alarm inputs and two exit-button or door-sensor interfaces
- Installation: Surface or flush mounting
- Protection Rating: IP65 weather resistance and IK07 impact resistance
- Operating Temperature: -40°C to +60°C
- Maximum Humidity: 95% relative humidity, non-condensing
- Material: Stainless steel front panel
- Power: Supplied through the 2-wire system; maximum consumption approximately 10 W
- Dimensions (H x L x W): 169mm x 31mm x 110mm
- Weight: 0.545 kg
Key Features
- One-touch visitor calling
- 2 MP camera for colour video intercom
- Wide 140° horizontal field of view
- Two-way voice communication with echo cancellation and noise suppression
- Controls up to two electronic locks
- IP65-rated outdoor housing
- IK07 impact protection
- Tamper detection and status indicators
- Suitable for surface or flush installation
- 2-wire connection can support retrofit installations using existing cabling
Professional Installation Requirements
- Installation and commissioning should be performed by a suitably qualified security or electrical installer. Connect the door station, lock power and associated wiring in accordance with the manufacturer’s instructions and AS/NZS 3000 where applicable.
Applications
- Residential villa and detached-house entry systems
- Small residential video intercom installations
- Apartment or townhouse access points using compatible Hikvision 2-wire equipment
- Outdoor pedestrian gates and entrance doors
- Retrofit intercom upgrades where existing two-wire cabling can be reused
Standards & Compliance
- AS/NZS 3000:2018 applies to associated electrical installation and wiring; product-specific Australian certification should be confirmed from the supplied Australian model documentation.
Environmental Benefits
- Stainless steel construction is durable and recyclable, supporting extended service life and reduced replacement waste
- 2-wire architecture may allow existing cabling to be reused, reducing rewiring materials and installation waste
- Low-voltage system operation can reduce wiring complexity compared with new network cabling installations
Warranty Information
Hikvision warranty coverage depends on the regional model, purchase channel and applicable contract terms. Australian warranty support is generally available through authorised Hikvision distribution partners; confirm the warranty period and eligibility with the supplier before purchase.
Available Now
Available through Hikvision and authorised Australian security-system distributors, subject to regional model and distributor stock.
