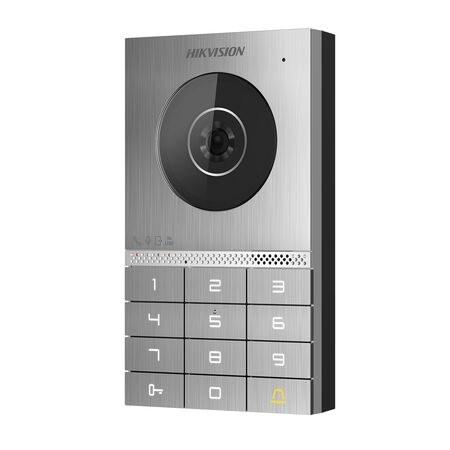

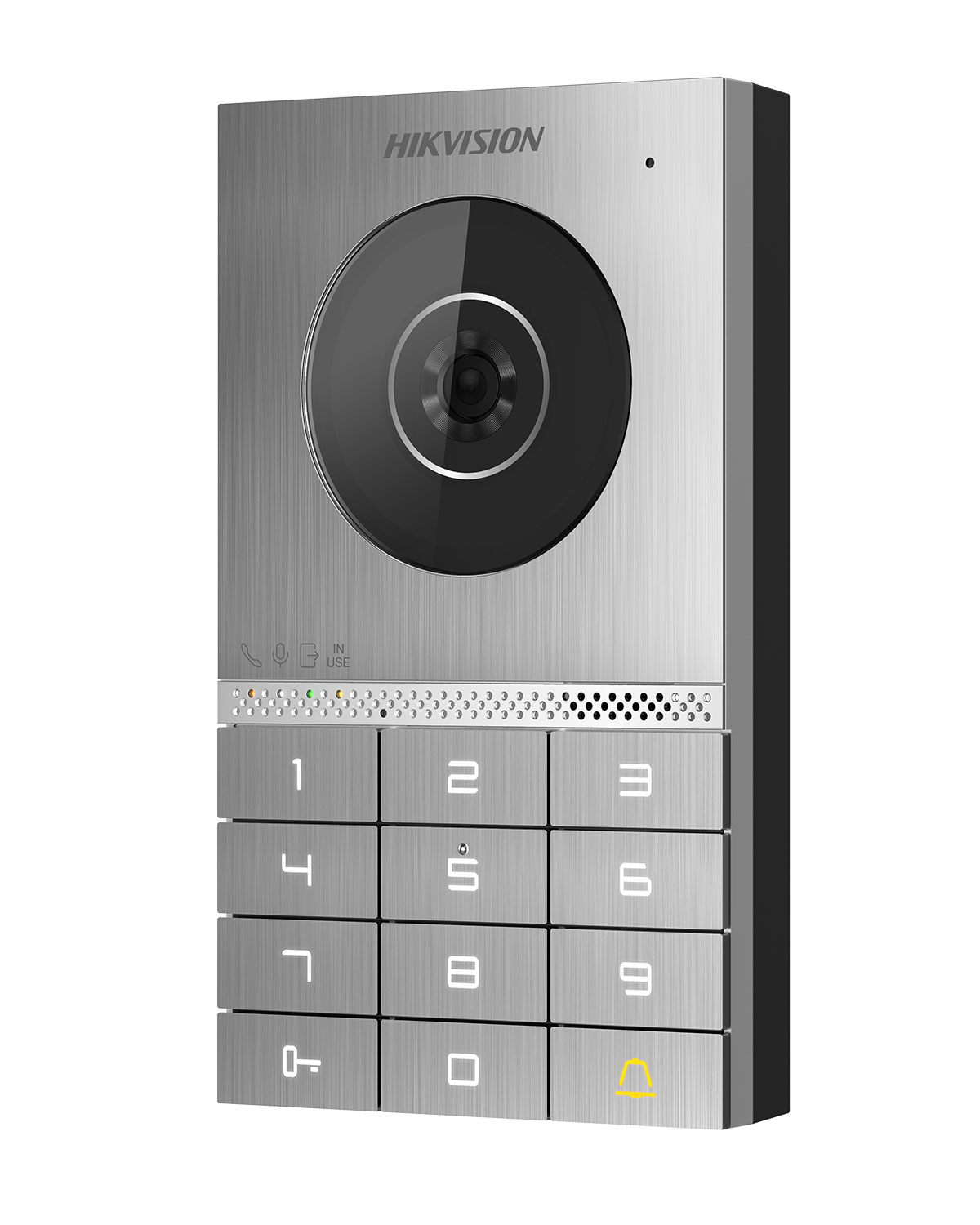

2 Wire Door Station Stainless Steel with Keypad Hikvision
Hikvision 2 wire door station features a stainless steel finish and keypad. Ideal for intercom installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision 2-Wire Villa Door Station, 2-Wire Video Intercom Door Station, Keypad Entry Station
Technical Specifications
- System: Hikvision 2-Wire HD video intercom
- Camera: 2MP low-illumination camera with IR supplement
- Viewing Angle: Horizontal 135°, vertical 85°
- Video: H.264 compression with WDR support
- Access Control: Numeric keypad, password access and 13.56 MHz M1 card reader
- Capacity: Up to 2,000 users and 10,000 cards or passwords
- Audio: Built-in microphone and speaker with two-way communication
- Lock Control: Two lock-control outputs, including relay and DC pulse output
- Interfaces: Two-wire IP interface, RS-485, two auxiliary inputs and tamper input
- Protection: IP65 weather resistance and IK08 impact resistance
- Power Supply: 48 VDC via DS-KAD7060EY distributor or 12 VDC
- Power Consumption: Maximum 6 W
- Installation: Surface or flush mounting
- Operating Temperature: -40°C to 60°C
- Housing: Stainless steel and plastic construction
- Dimensions (H x L x W): 165mm x 25mm x 95mm
- Weight: 0.4 kg
Key Features
- 2-wire video intercom connectivity for suitable Hikvision systems
- Integrated numeric keypad for PIN-based access
- Integrated 13.56 MHz M1 card reader
- 2MP camera with infrared illumination up to 3 m
- Two-way audio with noise and echo suppression
- Supports remote access functions through Hik-Connect when configured with a compatible system
- Controls compatible electric locks through two lock-control outputs
- IP65 and IK08 protection for outdoor installation
- Surface-mount and flush-mount installation options
Professional Installation Requirements
- Installation and commissioning should be completed by a suitably qualified security or electrical installer. Wiring, power supply, lock connections and system configuration must follow Hikvision instructions and applicable Australian electrical and access-control requirements.
Applications
- Residential villas and homes
- Apartment and multi-dwelling entrances
- Small commercial buildings
- Office and staff entry points
- Gated pedestrian entrances
- Outdoor video intercom and PIN/card access control systems
Standards & Compliance
- AS/NZS IEC 60839.11.1:2019 – applicable electronic access control system and component requirements; product-specific Australian certification should be confirmed with Hikvision or the authorised distributor
- AS/NZS 3000:2018 – applicable to associated electrical installation and wiring where relevant
Environmental Benefits
- Stainless steel construction supports long service life and reduced replacement waste
- Metal housing components are recyclable at end of service life through appropriate recycling streams
- Low-voltage 2-wire system architecture can reduce cabling requirements during suitable retrofit installations
- Power consumption is limited to a maximum of 6 W
Warranty Information
Warranty is handled under Hikvision Australia’s applicable product warranty and authorised-distributor terms. Retain the original purchase documentation and confirm the applicable warranty period at the time of purchase.
Available Now
Available through Hikvision and authorised Australian security distributors; confirm regional stock and compatibility with the intended 2-wire system before ordering.
