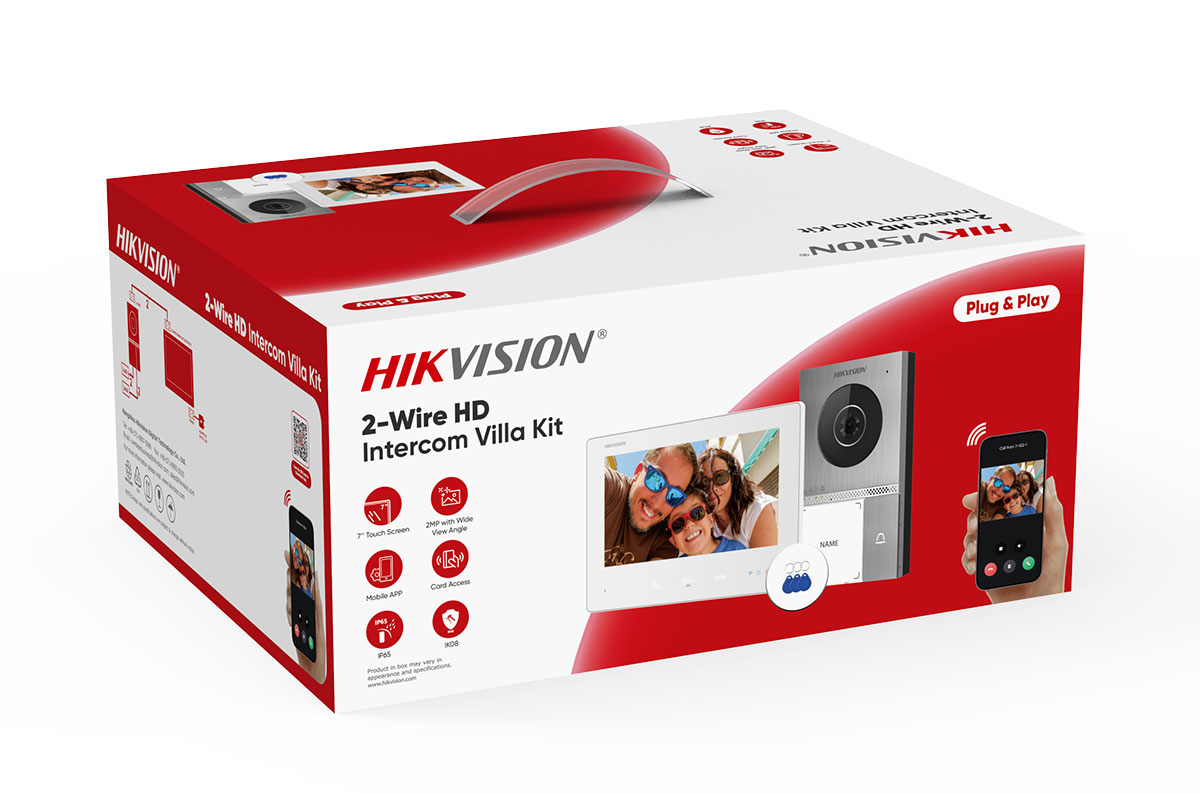

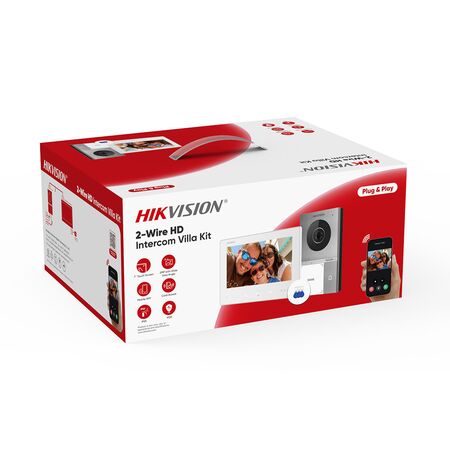

2 Wire HD Intercom Kit Hikvision
Hikvision 2 wire HD intercom kit. Ideal for intercom installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision 2-Wire HD Intercom Kit, Hikvision Villa Video Intercom Kit, 2-Wire Video Door Entry Kit
Technical Specifications
- System Type: 2-wire HD video intercom system
- Door Station Camera: 2MP HD resolution
- Door Station Field of View: 133° horizontal, 82° vertical
- Indoor Station Display: 7-inch capacitive touchscreen
- Indoor Station Resolution: 1024 x 600 pixels
- Video Compression: H.264
- Audio: Built-in microphone and speaker with noise suppression and echo cancellation
- Connectivity: Two-wire power, audio and video transmission
- Power Supply: 48V DC via compatible two-wire distributor
- Door Station Protection: IP65 water resistance and IK08 impact resistance
- Door Station Lighting: Low-light support with IR supplementary lighting
- Lock Control: Two outputs, including relay and DC pulse output
- Mobile Access: Hik-Connect app support via indoor station Wi-Fi
- Storage: Supports TF or microSD card storage; 32GB card supplied with the kit
- Expansion: Supports additional compatible indoor and sub-door stations
- Dimensions (H x L x W): 169mm x 401mm x 188mm
- Weight: 1.82 kg
Key Features
- Complete two-wire HD video intercom kit for residential and light-commercial entry points
- 2MP outdoor camera for visitor identification
- 7-inch touchscreen indoor monitor for answering calls and releasing connected locks
- Remote answering and door unlocking through the Hik-Connect app
- Two-core cabling carries power, audio and video, supporting retrofit installations
- IP65 and IK08-rated entry station for outdoor use
- Built-in IR supplementary lighting for low-light viewing
- Compatible with electronic locks through integrated lock-control outputs
- Expandable with additional compatible Hikvision 2-wire HD stations
Professional Installation Requirements
- Installation and commissioning should be completed by a suitably qualified security or electrical installer. Use compatible two-core cabling, distributor, power supply and door-lock hardware, and configure the system in accordance with manufacturer instructions and AS/NZS 3000 where applicable.
Applications
- Residential front-door and villa entry systems
- Apartment and small multi-dwelling intercom installations
- Small commercial offices and premises
- Retrofit projects reusing existing two-core intercom cabling
- Gated pedestrian entrances and electronic door-release systems
Standards & Compliance
- AS/NZS IEC 60839.11.2:2019 for electronic access control system application guidelines
- AS/NZS 3000:2018 for associated electrical installation and wiring requirements
Environmental Benefits
- Two-wire architecture can reuse existing cabling, reducing the need for new cable runs and associated building waste
- Low-voltage 48V DC system architecture supports efficient power distribution
- Durable IP65 and IK08 outdoor construction can extend service life and reduce replacement waste
- Replaceable and expandable system components can reduce the need to replace the complete installation
Warranty Information
Hikvision Australia warranty support applies when purchased through an authorised distribution partner and used in accordance with the product documentation. Confirm the specific warranty period with the authorised Australian distributor, as Hikvision warranty periods vary by product and supply agreement.
Available Now
Available through Hikvision and authorised Australian security, electrical and access-control distributors.
