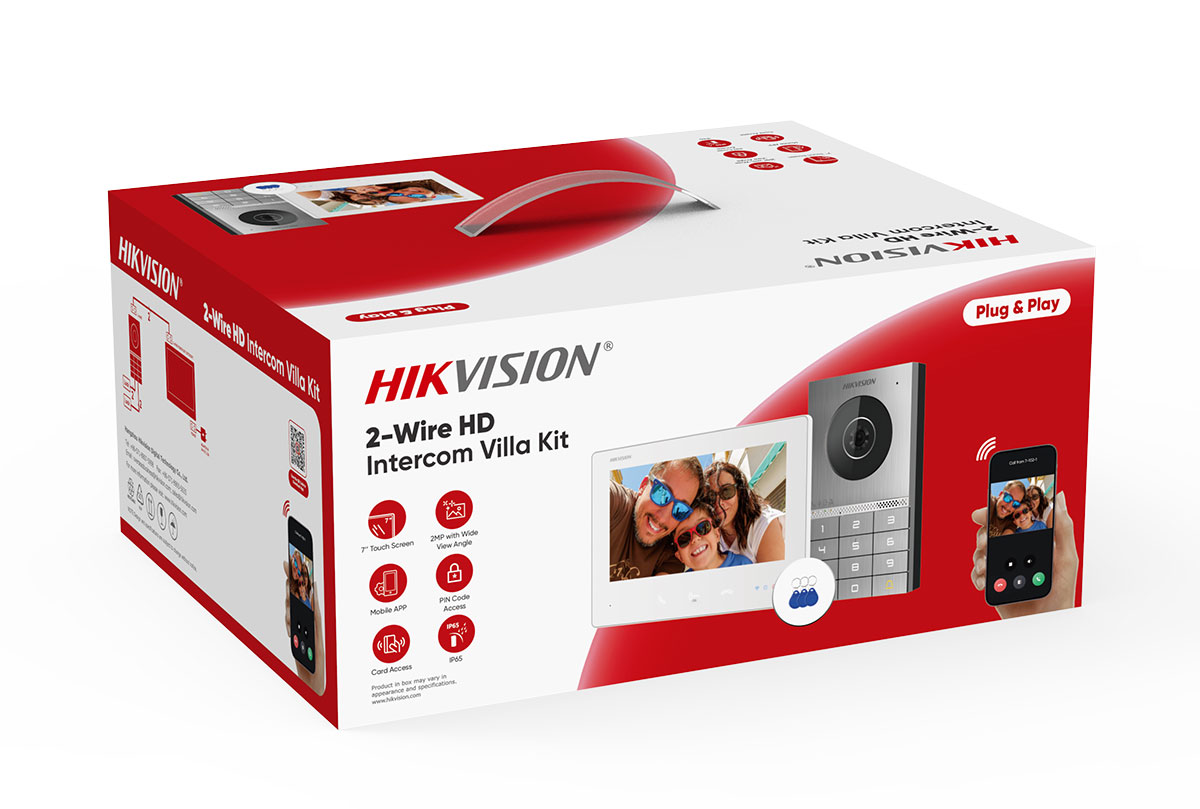

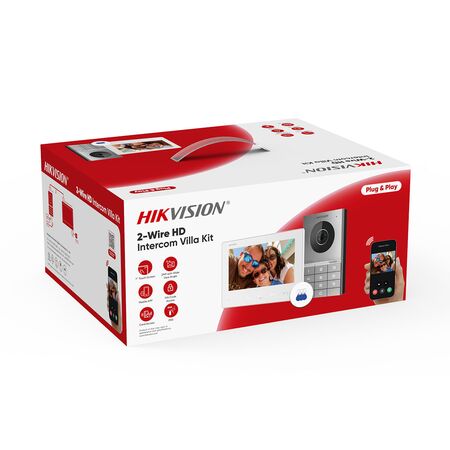

2 Wire HD Intercom Kit with Keypad Hikvision
Hikvision 2 wire HD intercom kit features a keypad door station. Ideal for intercom installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision 2-Wire HD Villa Intercom Kit, Hikvision Keypad Video Door Intercom, DS-KIS708EY Intercom System
Technical Specifications
- Kit Model: DS-KIS708EY
- Door Station: DS-KV7023EY-IME2 2MP HD keypad station
- Indoor Station: DS-KH7300EY-WTPE2/White 7-inch touchscreen monitor
- Video Resolution: 1920 × 1080 pixels
- Indoor Monitor Resolution: 1024 × 600 pixels
- Viewing Angle: 135° horizontal, 85° vertical
- Access Methods: PIN code, compatible M1 card, indoor monitor and Hik-Connect app
- Keypad: 12-button physical keypad
- Lock Control: Two lock-control outputs
- Connection: Two-wire HD interface for power, video, audio and data
- Indoor Station Connectivity: 2.4 GHz Wi-Fi
- Storage: 32 GB TF card included; monitor supports up to 128 GB
- Door Station Protection: IP65 weather resistance and IK08 impact protection
- Door Station Operating Temperature: -40°C to 60°C
- Indoor Station Operating Temperature: -10°C to 50°C
- Power Supply: 24 VDC, 2.5 A adaptor included
- Audio: Two-way audio with noise suppression and echo cancellation
- Video Compression: H.264
- Installation: Outdoor surface mounting for door station; indoor surface mounting for monitor
- Dimensions (H x L x W): 190.2mm x 20mm x 138.2mm
- Weight: 1.8 kg
Key Features
- 2MP HD video door station with infrared supplementary lighting and WDR
- 12-button keypad enables PIN-code entry
- Compatible M1 card reader for authorised access
- 7-inch capacitive colour touchscreen indoor monitor
- Remote visitor answering, live viewing and door release through Hik-Connect
- Two-way audio with microphone, speaker, noise suppression and echo cancellation
- Supports control of up to two compatible locks
- Two-wire HD connection reduces cabling requirements and can suit selected retrofit installations
- IP65 and IK08 protection for the outdoor door station
- Includes door station, indoor monitor, mounting accessories, 32 GB memory card and kit power hardware
Professional Installation Requirements
- Installation and configuration should be performed by a suitably qualified security or electrical technician. Assess existing two-core cabling, configure the Hikvision system and connect any electric strike, magnetic lock or gate hardware in accordance with the manufacturer’s instructions and applicable electrical requirements.
Applications
- Residential villas and houses
- Townhouses and small offices
- Pedestrian gates and entrance doors
- Video visitor identification and two-way communication
- PIN- or card-controlled access
- Upgrading suitable existing two-core intercom cabling
Standards & Compliance
- AS/NZS 62368.1:2022 – applicable electrical safety standard for audio/video and information and communication technology equipment; confirm product-specific RCM and declaration documentation before supply or installation
Environmental Benefits
- Two-wire architecture can allow reuse of suitable existing cabling, reducing rewiring materials and installation waste
- Low-power electronic equipment with maximum stated consumption of approximately 6 W per station
- Durable IP65 and IK08-rated outdoor construction can extend service life and reduce replacement waste
- 32 GB local storage reduces reliance on separate recording hardware for captured visitor images
Warranty Information
Typically supplied with a 3-year Hikvision Australia warranty through authorised Australian distributors, subject to the seller’s terms, proof of purchase and authorised distribution requirements.
Available Now
Available through Hikvision and authorised Australian security, access-control and intercom distributors.
