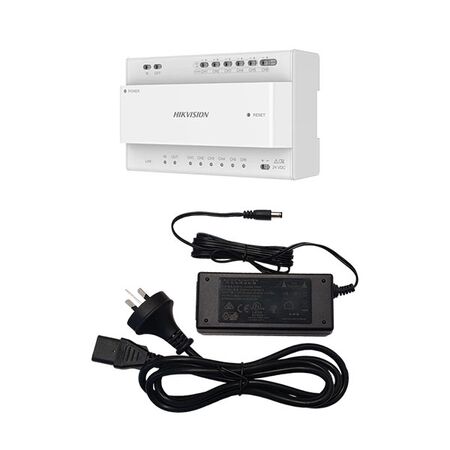

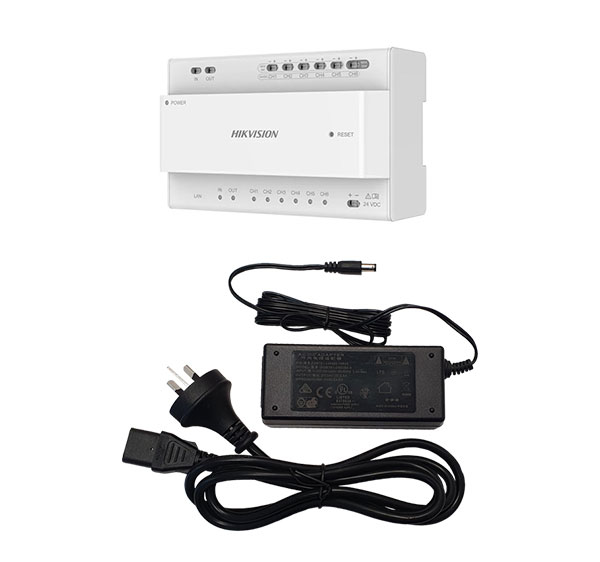

2-Wire Intercom Distributor 6 Port with Power Supply Hikvision
Hikvision 2-wire intercom distributor features 6 ports and an included power supply. Ideal for two-wire intercom installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision 2-Wire Video/Audio/Power Distributor, 6-Port Intercom Distributor, DS-KAD706-P
Technical Specifications
- Model: DS-KAD706-P
- Interface Type: 2-wire video, audio and power distribution
- Device Ports: 6 two-wire ports
- Door Station Output: 1 port with maximum 16 W output power
- Cascade Ports: 2 two-wire cascade interfaces
- Network Interface: 1 x RJ45
- Power Supply: 24 VDC power adapter included
- Power Consumption: Less than 9 W
- Operating Temperature: -10 °C to 40 °C
- Operating Humidity: 10% to 90% non-condensing
- Mounting: DIN rail mounting
- Indicators: 8 interface indicators and 1 power indicator
- Dimensions (H x L x W): 65.9mm x 143.7mm x 92.4mm
- Weight: 0.9 kg
Key Features
- Distributes video, audio and power over two-wire intercom cabling
- Supports up to six connected intercom devices
- Dedicated door station port with maximum 16 W output
- Two cascade interfaces allow expansion with compatible Hikvision distributors
- RJ45 network interface for system configuration and network connectivity
- Included 24 VDC power supply
- Suitable for Hikvision second-generation two-wire video intercom systems
- DIN rail installation for structured equipment mounting
Professional Installation Requirements
- Installation involving the included mains-powered adapter should be performed by a suitably qualified person. Low-voltage intercom wiring should be installed and tested by a competent security or communications installer in accordance with manufacturer instructions and applicable electrical requirements.
Applications
- Residential two-wire video intercom systems
- Multi-unit apartment and townhouse intercom installations
- Commercial access control and door entry systems
- Expansion of Hikvision second-generation two-wire intercom systems
- Connecting indoor stations and compatible door stations
Standards & Compliance
- AS/NZS CISPR 32:2015 EMC emissions standard referenced in the Hikvision product documentation
Environmental Benefits
- RoHS-compliant construction helps restrict hazardous substances in electronic equipment
- Low-voltage 24 VDC operation supports efficient power distribution within intercom systems
- Durable DIN rail-mounted design can extend service life and reduce replacement waste
- Electronic components should be recycled through an appropriate e-waste collection programme at end of life
Warranty Information
Warranty is subject to Hikvision Australia warranty terms, the applicable sales agreement and proof of purchase. Confirm the specific warranty period with the authorised Australian distributor.
Available Now
Available through Hikvision and authorised Australian security, access control and intercom distributors.
