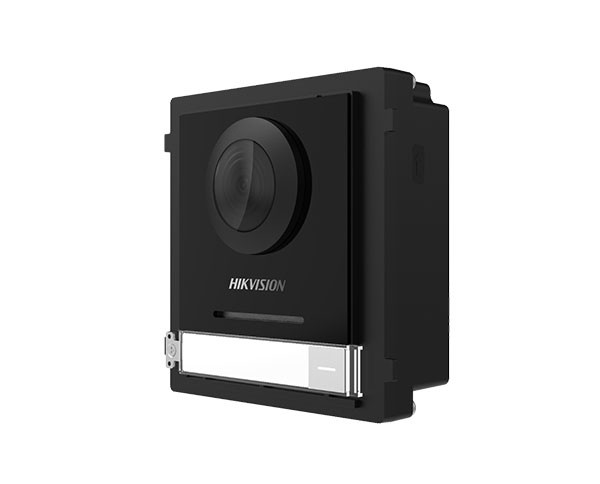

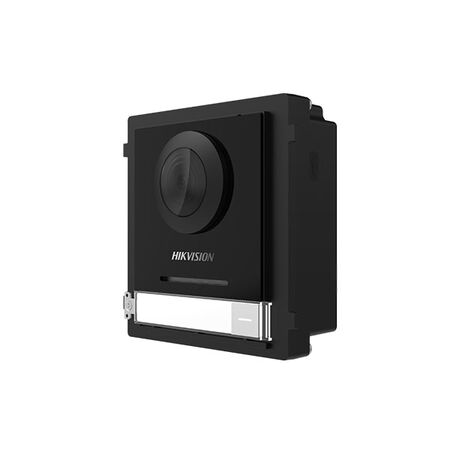

2-Wire Intercom Door Station Hikvision
Hikvision 2-wire intercom door station. Ideal for intercom installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision 2-Wire Video Intercom Door Station, Hikvision Modular Two-Wire Door Station, Hikvision DS-KD8003-IME2/S
Technical Specifications
- System Type: Two-wire IP video intercom
- Camera: 2MP HD fisheye camera with IR illumination
- Field of View: 180° horizontal, 96° vertical
- Video Resolution: Main stream 1920 × 1080; sub stream 720 × 480
- Audio: Two-way audio with noise suppression and echo cancellation
- Lock Control: 2 relay outputs, maximum 30 VDC, 2 A
- Door Contact Inputs: 2
- Exit Button Inputs: 2
- Transmission: Two-wire transmission for power and data
- Power Supply: 24 VDC two-wire supply or 12 VDC independent supply
- Power Consumption: 4 W
- Protection Rating: IP65
- Installation: Surface or flush mounting
- Operating Temperature: -40°C to +55°C
- Application Environment: Outdoor
- Dimensions (H x L x W): 100mm x 42mm x 98mm
- Weight: 0.4228 kg
Key Features
- 2MP fisheye camera for high-definition visitor identification
- 180° horizontal viewing angle helps cover entrances and approach areas
- Two-way audio with noise suppression and echo cancellation
- Supports control of two electronic locks
- IP65-rated housing for outdoor installation
- Two-wire power and data transmission supports retrofit installations
- Compatible with modular Hikvision intercom configurations
- Supports up to 16 sub-door stations
Professional Installation Requirements
- Installation should be completed by a suitably qualified security or communications installer. Connect the unit to the compatible Hikvision two-wire distributor or approved 12 VDC supply, configure door-lock interfaces correctly, and follow AS/NZS 3000:2018 and manufacturer instructions for associated electrical work.
Applications
- Residential villa and townhouse entrances
- Apartment and multi-dwelling building entry systems
- Commercial building access control
- Office, clinic and education facility entrances
- Retrofit intercom installations using existing two-wire cabling
- Gate and pedestrian door monitoring with electronic lock release
Standards & Compliance
- AS/NZS 62368.1: applicable safety standard for audio, video and information and communication technology equipment; verify the supplied variant's declaration
- AS/NZS 3000:2018: applicable to associated low-voltage electrical installation and wiring practices
Environmental Benefits
- Two-wire power and data transmission can support reuse of existing building cabling, reducing rewiring material and installation waste
- IP65-rated construction and modular system design can support longer service life and reduce replacement frequency
Warranty Information
Hikvision Australia warranty terms apply. Hikvision Australia publishes a five-year warranty programme for eligible products; confirm that the supplied DS-KD8003-IME2 variant and purchase channel are covered before relying on this period.
Available Now
Available through Hikvision and authorised Australian security, access-control and intercom distributors.
