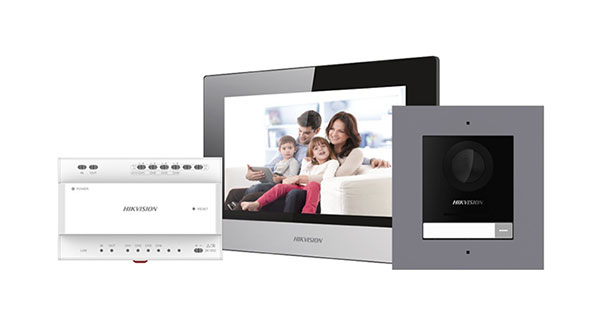

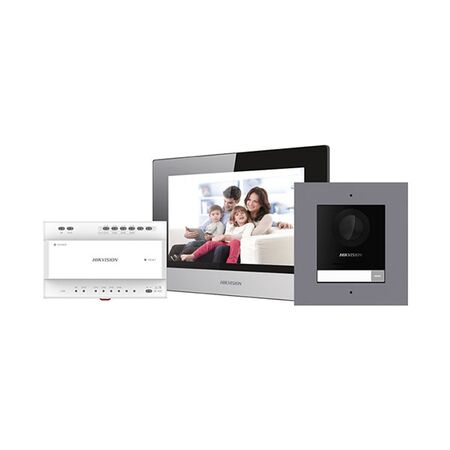

2-Wire Intercom Kit Surface Hikvision
Hikvision intercom kit features 2-wire connection and surface mounting. Ideal for intercom installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: HiLook 2-Wire Intercom Kit, HA-KIT-PY2, 2-Wire Video Doorbell Kit, Hikvision Villa Intercom Kit
Technical Specifications
- Kit Contents: 7-inch indoor monitor, 2MP door station, rain cover, wall-mount bracket and Australian-standard power adaptor
- Connection: 2-wire video and power connection
- Door Station Camera: 2MP HD camera
- Video Resolution: Main stream up to 1920 × 1080; sub stream 640 × 480
- Night Vision: Low-light IR supplement up to 3 m
- Field of View: Horizontal 140°, vertical 85°
- Display: 7-inch TFT capacitive touchscreen
- Display Resolution: 1024 × 600
- Wireless Network: Wi-Fi 802.11 b/g/n at 2.4 GHz
- Door Station Protection: IP65
- Door Station Output: 12 V DC, 500 mA for electronic lock
- Audio: Built-in microphone and loudspeaker with noise suppression and echo cancellation
- Supported Protocols: TCP/IP, RTSP and SIP 2.0
- Cable Distance: Up to 60 m using AWG20 or AWG18 cable; up to 35 m using AWG24 or 0.5–0.8 mm² parallel cable
- Power Input: 24 V DC, 1.5 A indoor station
- Operating Temperature: Door station -40°C to 60°C; indoor station -10°C to 50°C
- Dimensions (H x L x W): 175mm x 140mm x 113.5mm
- Weight: 1.2 kg
Key Features
- Two-wire plug-and-play video intercom system
- Surface-mount outdoor door station with stainless steel panel
- 7-inch indoor touchscreen monitor
- Hik-Connect mobile app support for calls, live view and remote door release
- 2MP camera with wide 140° horizontal viewing angle
- IP65-rated outdoor door station
- Supports exit button or door-contact inputs
- Direct 12 V DC lock output from the door station
- Suitable for villas, houses and retrofit installations using existing two-core cabling
Professional Installation Requirements
- Installation should be performed by a suitably qualified security, communications or electrical installer. Configure the low-voltage power supply, door-lock connection and access-control wiring in accordance with applicable Australian electrical and security installation requirements.
Applications
- Residential front-door intercom systems
- Villa and townhouse entry control
- Small office and commercial premises access
- Gate and pedestrian entrance communication
- Retrofit intercom installations using existing two-wire cabling
Standards & Compliance
- AS/NZS IEC 60839.11.2:2019 is applicable as guidance for electronic access control system installation and operation
- AS/NZS 3820 is relevant to essential safety requirements for applicable low-voltage electrical equipment
- AS/NZS 3000 may apply to associated electrical installation and mains-connected power-supply work
Environmental Benefits
- Two-wire architecture can allow reuse of existing cabling, reducing rewiring materials and installation waste
- Low-voltage operation supports efficient power use compared with higher-voltage access-control equipment
- IP65 outdoor protection and durable metal construction can extend service life and reduce replacement waste
- Electronic components should be disposed of through appropriate e-waste recycling channels at end of life
Warranty Information
Hikvision warranty support is available when purchased through an authorised Australian distribution partner; the applicable warranty period is subject to the product series, region and original proof of purchase.
Available Now
Available through Hikvision HiLook authorised Australian distributors and security-equipment resellers; confirm current regional stock before ordering.
