Trade Discount 25%

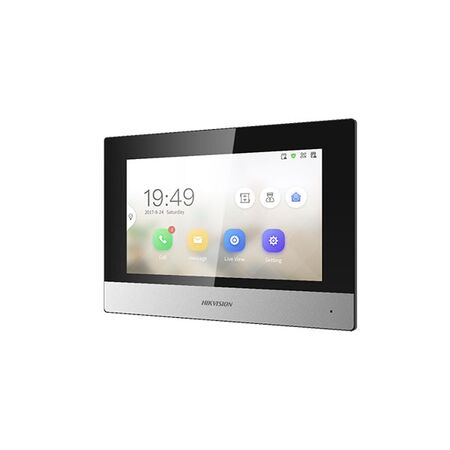

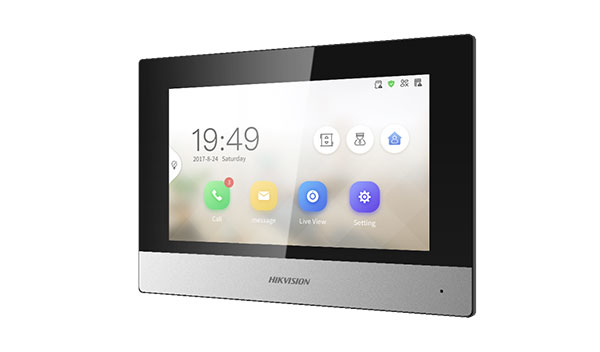

2-Wire Intercom Room Station Black Hikvision
Hikvision 2-wire intercom room station in black. Ideal for intercom installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision 2-Wire Video Intercom Indoor Station, 7-inch Room Station, DS-KH6320-WTE2 Indoor Monitor
Technical Specifications
- Model: DS-KH6320-WTE2
- Product Type: 2-wire IP indoor video intercom station
- Display: 7-inch TFT LCD
- Display Resolution: 1024 × 600 pixels
- Operation: Capacitive touch screen
- Wireless Network: Wi-Fi 802.11 b/g/n
- Communication Protocols: TCP/IP, SIP, RTSP
- Audio: Built-in omnidirectional microphone and loudspeaker
- Audio Compression: G.711 U, 64 Kbps
- Interfaces: Two-wire interface, RS-485 and alarm terminal
- Alarm Inputs: 8 zones
- Relay Outputs: 2
- TF Card: Supports cards up to 32 GB
- Power Supply: Two-wire system
- Power Consumption: ≤6 W
- Installation: Surface or wall mounting
- Operating Temperature: -10°C to 50°C
- Operating Humidity: 0% to 90%
- Application Environment: Indoor
- Colour: Black
- Dimensions (H x L x W): 140mm x 200mm x 15.1mm
- Weight: 0.4 kg
Key Features
- 7-inch capacitive touch display
- Designed for Hikvision 2-wire video intercom systems
- Wi-Fi connectivity for Hik-Connect mobile control
- Supports remote door unlocking and live viewing of linked door stations and cameras
- Eight alarm inputs and two relay outputs
- Supports up to 32 GB TF card storage
- Noise suppression and echo cancellation for improved audio clarity
- Slim surface-mount indoor design
Professional Installation Requirements
- Installation should be performed by a suitably qualified security or electrical installer. Configure the station within a compatible Hikvision 2-wire intercom system and follow the manufacturer’s wiring and commissioning instructions.
Applications
- Residential apartment and villa intercom systems
- Multi-dwelling residential developments
- Small commercial access-control installations
- Indoor video communication with Hikvision door stations
- Remote door release and visitor monitoring
Standards & Compliance
- AS/NZS 62368.1:2018 may apply to the safety of audio, video and information and communication technology equipment; verify the product’s Australian RCM and supplier compliance documentation.
- AS/NZS 3820 may apply as an essential safety framework for in-scope electrical equipment where no more specific Australian or New Zealand standard is declared.
Environmental Benefits
- Low operating power consumption of up to 6 W helps reduce energy use during continuous operation
- Two-wire system architecture can support reuse of existing compatible cabling, reducing installation material waste
- Durable electronic equipment design can reduce replacement frequency and associated e-waste
- TF card storage and network connectivity can reduce reliance on separate recording hardware in some installations
Warranty Information
Hikvision Australia warranty support is subject to the applicable sales contract and authorised-distributor terms. Australian security distributors commonly advertise a 3-year manufacturer warranty for Hikvision products; confirm coverage and eligibility at purchase.
Available Now
Available through Hikvision and authorised Australian security-system distributors, subject to distributor stock and regional model availability.
