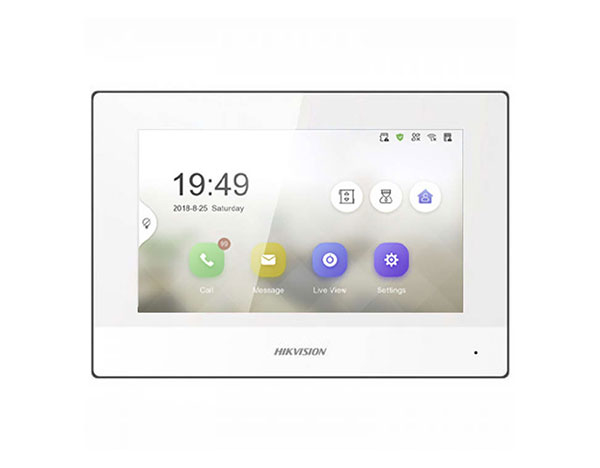

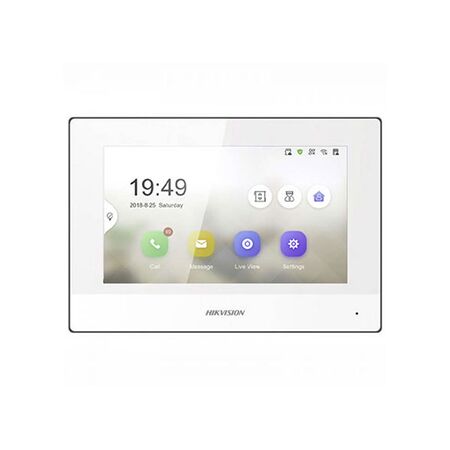

2-Wire Intercom Room Station White Hikvision
Hikvision 2-wire intercom room station in white. Ideal for intercom installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 2-Wire Video Intercom Indoor Station, Indoor Monitor, Room Station, Video Door Entry Monitor
Technical Specifications
- System Type: 2-wire IP video intercom indoor station
- Display: 7-inch IPS TFT touch screen
- Display Resolution: 1024 × 600
- Audio: Built-in microphone and loudspeaker with noise suppression and echo cancellation
- Communication Protocols: TCP/IP, SIP and RTSP
- Wireless Network: Wi-Fi 802.11b/g/n
- Alarm Inputs: 8 configurable inputs
- Relay Outputs: 2
- RS-485: 1 interface
- Memory: MicroSD card support up to 128 GB
- Power Supply: Via Hikvision KAD704Y or KAD706Y series distributor
- Power Consumption: ≤4 W
- Installation: Surface mounting
- Operating Temperature: -10°C to 50°C
- Operating Humidity: 10% to 90%, non-condensing
- Colour: White
- Dimensions (H x L x W): 140mm x 23.6mm x 200mm
- Weight: 0.325 kg
Key Features
- 7-inch 1024 × 600 capacitive touch display
- Two-wire IP connection for compatible Hikvision intercom systems
- Receive visitor calls, view door stations and unlock doors remotely
- Hik-Connect mobile application support
- Supports linked cameras and elevator access control
- Two relay outputs for door or auxiliary control
- Eight alarm inputs for integration with security devices
- Built-in two-way audio with echo cancellation
- Surface-mount indoor installation
Professional Installation Requirements
- Installation and commissioning should be completed by a suitably qualified security or electrical technician. Connect only to compatible Hikvision two-wire distributors and complete associated cabling in accordance with AS/NZS 3000 where applicable.
Applications
- Residential video intercom systems
- Apartment and multi-dwelling entry systems
- Commercial office access control
- Villa and townhouse intercom installations
- Replacement or expansion of compatible Hikvision two-wire systems
Standards & Compliance
- AS/NZS 3000:2018 – applicable to associated electrical installation and wiring
- AS/NZS 3820 – essential safety requirements for applicable electrical equipment
Environmental Benefits
- Low power consumption of up to 4 W during operation
- Two-wire architecture can support reuse of existing compatible cabling, reducing installation material requirements
- Long-service electronic design can reduce replacement frequency and associated waste
Warranty Information
Australian Hikvision security and intercom products are commonly supplied with a 3-year back-to-base manufacturer warranty through authorised distributors; confirm the applicable warranty terms at purchase.
Available Now
Available through Hikvision and authorised Australian security and electrical distributors.
