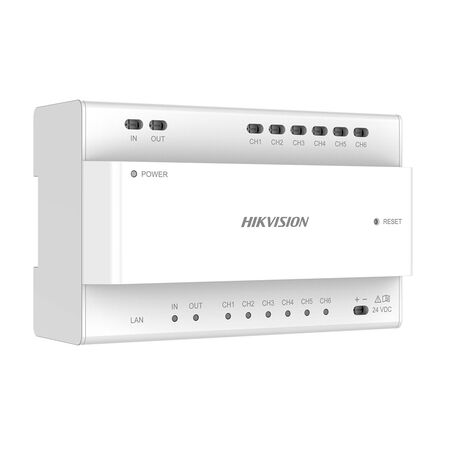

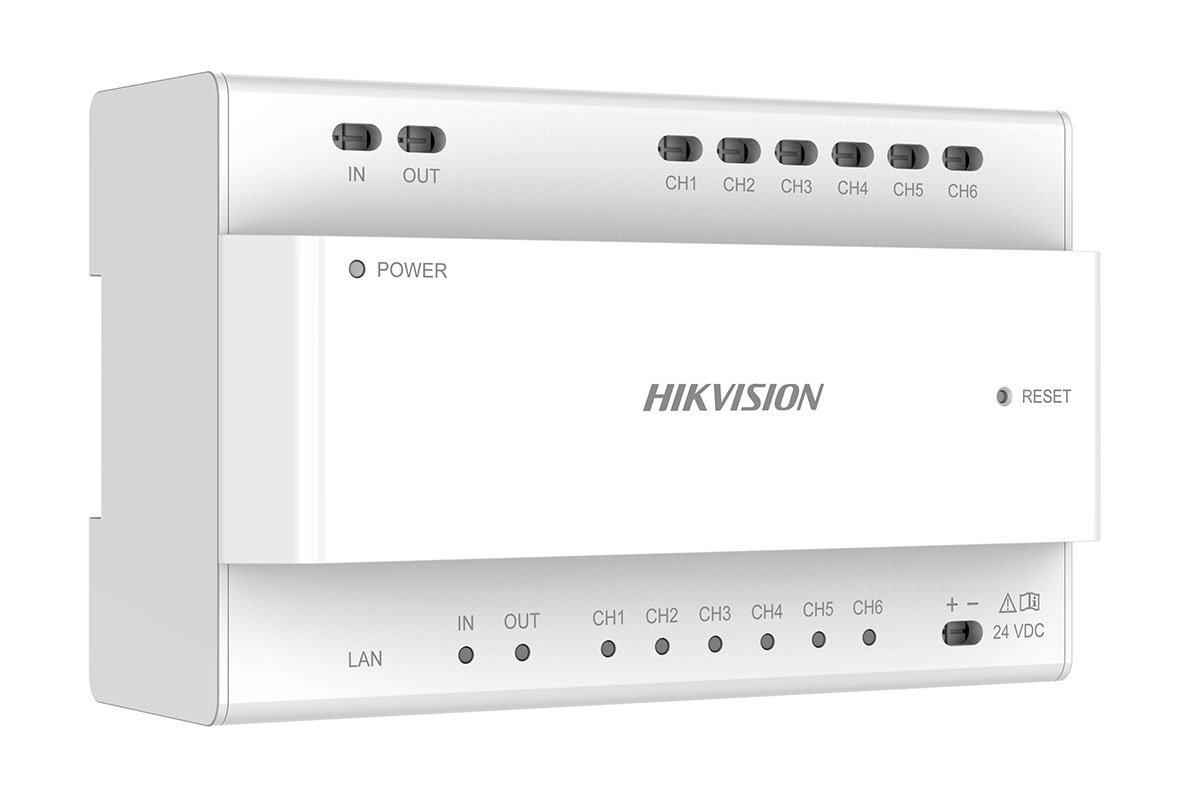

2-Wire IP Intercom Distributor Expander with Power Supply Hikvision
Hikvision 2-wire IP intercom distributor and expander features an included power supply. Ideal for two-wire intercom installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision Two-Wire Video Intercom Distributor, 2-Wire Intercom Expander, Video/Audio Distributor Extender
Technical Specifications
- Model: DS-KAD706-SP
- Network Interface: 1 x RJ45, including reserved terminal and WAN access
- Two-Wire Interfaces: 6 channels for data exchange and cascading
- Signal Indicators: 6 channel status indicators
- Power Supply: Two-wire mode, 24 VDC power adapter included
- Power Consumption: Less than 7 W
- Operating Temperature: -10°C to +40°C
- Operating Humidity: 10% to 90% relative humidity, non-condensing
- Mounting: DIN rail compatible
- Communications: TCP/IP and RTSP
- Cascading: Connects with DS-KAD706-P distributors
- Dimensions (H x L x W): 65.9mm x 143.7mm x 92.4mm
- Weight: 0.8942 kg
Key Features
- Extends Hikvision two-wire IP video and audio intercom systems
- Six two-wire cascade interfaces for connection to DS-KAD706-P devices
- RJ45 network interface for system networking
- Includes a 24 VDC power adapter
- Status indicators provide visibility of channel and power operation
- Supports DIN rail installation
- Suitable for larger multi-station intercom deployments
Professional Installation Requirements
- Installation should be performed by a suitably qualified security or low-voltage communications installer. Where the included power adapter connects to mains power, installation must comply with applicable Australian electrical requirements and manufacturer instructions.
Applications
- Apartment and multi-dwelling intercom systems
- Residential two-wire video intercom installations
- Commercial building entry systems
- Multi-station door entry and access control systems
- Retrofitting IP intercom systems over existing two-wire cabling
Standards & Compliance
- AS/NZS CISPR 32:2015 electromagnetic compatibility compliance is listed in the Hikvision product documentation
Environmental Benefits
- Supports retrofit installations that can reuse existing two-wire cabling, reducing the need for new cable runs and associated material waste
- Low power consumption of less than 7 W during operation
- RoHS compliance is listed in Hikvision product documentation, restricting specified hazardous substances
- Long-term system expansion through cascading can reduce replacement of existing intercom infrastructure
Warranty Information
Warranty is subject to Hikvision Australia product terms and the applicable authorised-distributor agreement. Retain the original invoice and confirm the product-specific warranty period with the authorised Australian distributor.
Available Now
Available through Hikvision and authorised Australian security-system distributors, subject to regional stock availability.
