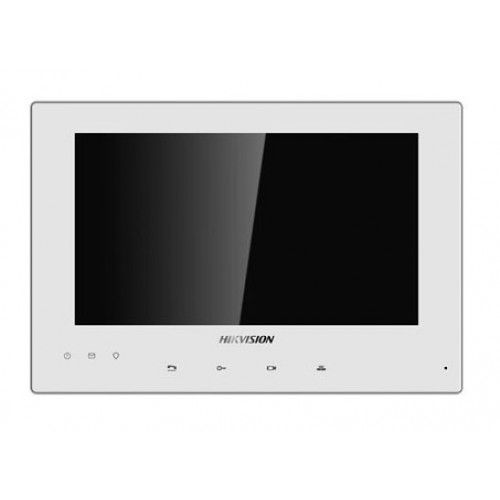

2-Wire Room Station 7 Inch White Hikvision
Hikvision 2-wire room station features a 7 inch screen in white. Ideal for video intercom installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision 7-Inch 2-Wire Video Intercom Indoor Station, 2-Wire Room Monitor, Indoor Video Intercom Monitor
Technical Specifications
- Model: DS-KH6320Y-WTE2/White
- Screen Size: 7-inch capacitive touch screen
- Display Resolution: 1024 × 600 pixels
- Display Type: Colour TFT LCD
- Connection: 2-wire IP interface
- Network: 10/100 Mbps self-adaptive
- Wireless: Wi-Fi 802.11 b/g/n
- Communication Protocols: TCP/IP, SIP and RTSP
- Audio: Built-in microphone and loudspeaker with noise suppression and echo cancellation
- Storage: TF/microSD card support up to 128 GB
- Alarm Inputs: 8 channels
- Relay Outputs: 2
- RS-485: 1 interface
- Power Supply: Two-wire system
- Power Consumption: ≤6 W
- Installation: Surface mounting
- Operating Temperature: -10°C to 50°C
- Operating Humidity: 0% to 90%
- Application Environment: Indoor
- Dimensions (H x L x W): 200mm x 140mm x 15.1mm
- Weight: 0.4 kg
Key Features
- 7-inch colour touch screen for indoor video intercom control
- 2-wire IP connection supports power and communication over compatible cabling
- Wi-Fi connectivity for compatible Hik-Connect and network functions
- Remote door unlocking through the client or compatible mobile application
- Live view of linked door stations and compatible cameras
- Supports up to 16 linked network cameras
- Supports up to five linked indoor extensions
- Eight alarm inputs, two relay outputs and one RS-485 interface
- Surface-mount design for residential and light-commercial intercom installations
Professional Installation Requirements
- Installation should be performed by a qualified security or intercom installer. The station must be connected to a compatible Hikvision 2-wire distributor or power supply; any mains-connected equipment should be installed by a licensed electrician in accordance with applicable wiring requirements.
Applications
- Residential video intercom systems
- Apartment and townhouse entry systems
- Small commercial access-control installations
- Indoor monitoring of Hikvision 2-wire door stations
- Visitor communication and remote door release
Environmental Benefits
- Low operating consumption of up to 6 W can reduce energy use during continuous standby and monitoring
- 2-wire system design can allow reuse of existing compatible cabling, reducing installation material and cable waste
- Indoor electronic construction supports extended service life when installed within the specified operating environment
Warranty Information
Hikvision products purchased through authorised Australian distribution channels are supported by Hikvision Australia warranty and RMA processes. The product-specific warranty period should be confirmed with the supplying authorised distributor; Hikvision’s published five-year warranty programme applies only to listed premium project-oriented product series and does not identify this room station.
Available Now
Available through Hikvision and authorised Australian security, access-control and video-intercom distributors.
