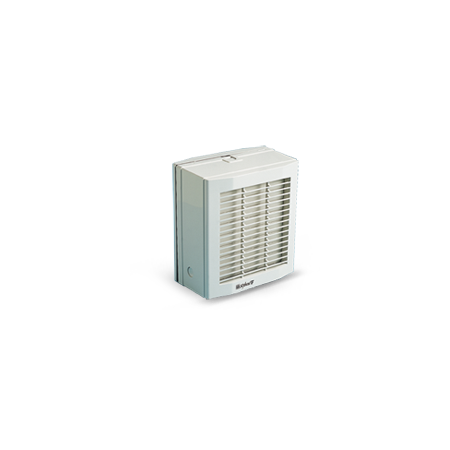

230mm Wall or Window Fan | IPX4 Rated | Electric Shutters | ABS Construction by Fantech
230mm wall or window fan with IPX4 rating and electric shutters—ideal for residential and commercial ventilation. Built for durability, with tough ABS plastic and energy-efficient design.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Fan wall or window model 230mm 1phase
Brand: Fantech
SKU: HV-230AE
Alternatively Known As: 230mm Wall Fan, 230mm Window Fan, Stylvent Fan
Performance Curve
Technical Specifications
- Electricity supply: Single-phase, 230V, 50Hz
- Maximum ambient temperature: 40°C
- Motor type: External rotor motor for HV-230
- Bearings: Ball bearings for HV-230
- Single speed: Not suitable for speed control
- Internal thermal protection: Auto-reset type for HV-230
- Dimensions (H x L x W): 230mm x 230mm x 230mm
- Weight: 3.0 kg
Key Features
- Wall or window mounted design suitable for various applications.
- IPX4 rated for protection against water ingress.
- Electric shutters prevent outside air from entering when fan is off.
- Tough and long-lasting ABS plastic construction.
- Optional reversing switch for dual purpose operation.
Professional Installation Requirements
- Professional installation is recommended for optimal performance and safety.
Applications
- Residential: Homes, apartments, offices
- Commercial: Retail, hospitality, workspaces
- General: Suitable for both supply and exhaust applications
Standards & Compliance
- Complies with ISO5801:1997 for airflow testing.
- Complies with BS848:Part 2, 1985 for noise testing.
Environmental Benefits
- Energy-efficient design reduces power consumption.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Fantech Stylvent Series 230mm Wall or Window Fan is available now for immediate purchase. Ideal for residential and commercial spaces requiring effective ventilation.
