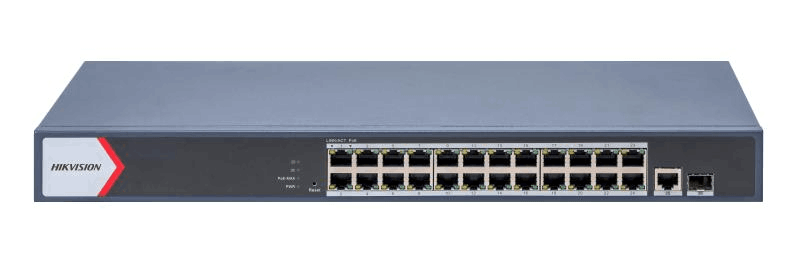

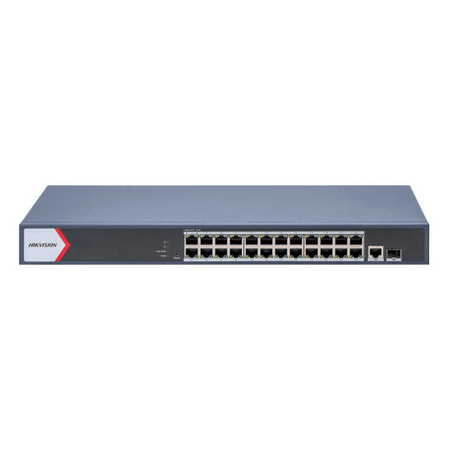

24 Port Managed Gigabit PoE Switch | 370W Power Budget | Long Range PoE | by HIKVISION
The 24 Port Managed Gigabit PoE Switch is designed for enterprise network infrastructure, featuring 24 gigabit PoE RJ45 ports and a total power budget of 370W. Ideal for security system integration and remote management, it supports long-range PoE transmission up to 300 meters, ensuring reliable connectivity for all your devices.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 24 Port Managed Gigabit PoE Switch | 370W Power Budget | Long Range PoE | by HIKVISION
Brand: HIKVISION
SKU: DS-3E1526P-EI
Alternatively Known As: HIKVISION 24 Port PoE Switch, Managed Gigabit PoE Switch, DS-3E1526P-EI Network Switch
Technical Specifications
- Ports: 24 x gigabit PoE RJ45, 1 x gigabit RJ45, 1 x gigabit SFP fiber port
- PoE Power Budget: 370 W
- Surge Protection: 6 kV
- Long Range PoE Transmission: Up to 300 meters
- Management: Unified cloud management with visualized topology and remote troubleshooting
- Dimensions (H x L x W): 44mm x 220mm x 440mm
- Weight: 3.5 kg
Key Features
- 24 x gigabit PoE RJ45 ports, 1 × gigabit RJ45 port, 1 x gigabit fiber optical port
- Total PoE power budget of 370 W
- Unified cloud management for security systems
- Network topology visualization and remote troubleshooting
- Up to 300 m long-range PoE transmission
- 6 kV surge protection for enhanced device safety
Professional Installation Requirements
- Installation by a qualified network technician or electrician is recommended to ensure proper setup and compliance with electrical standards.
Applications
- Enterprise and commercial network infrastructure
- Security system integration with PoE devices
- Remote network management and monitoring
- Long-range PoE device connectivity up to 300 meters
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Supports energy-efficient PoE technology reducing overall power consumption
- Enables centralized management reducing the need for multiple devices and lowering electronic waste
Warranty Information
2 years warranty from the manufacturer covering defects and performance issues.
Available Now
The HIKVISION DS-3E1526P-EI Managed Gigabit PoE Switch is available for immediate purchase, ideal for enterprise network and security system applications.
