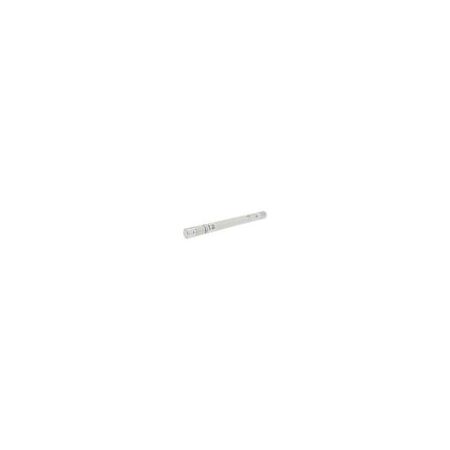

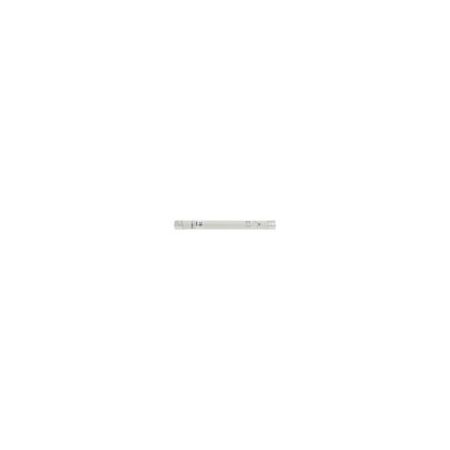

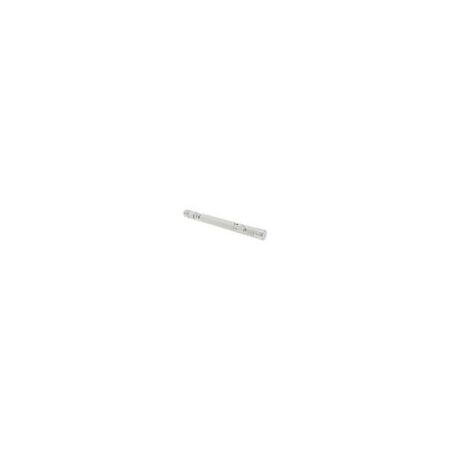

24kV Full Range Fuse 16A | 35.5kA Breaking Capacity | Clip-in Mounting by Eaton
The 24kV full range fuse rated at 16A is designed for medium voltage electrical systems, providing a high breaking capacity of 35.5kA. Ideal for industrial installations and power distribution networks, it features a clip-in mounting method for easy installation and compliance with safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 24kV Full Range Fuse 16A | 35.5kA Breaking Capacity | Clip-in Mounting by Eaton
Brand: Eaton
SKU: 24FDIHA16
Alternatively Known As: Medium Voltage Fuse, 16 Amp Fuse Link, 24kV Full Range Fuse, Eaton Bussmann Fuse
Technical Specifications
- Amperage Rating: 16 A
- Voltage Rating: 24 kV AC
- Breaking Capacity: 35.5 kA
- Performance Category: Full-range according to IEC 60282-1
- Rated Frequency: 50 Hz
- Resistance: 103 ohms
- Construction Size: 51 x 565 mm
- Mounting Method: Clip-in
- Used with: A3354710 Fuse clip
- Class: Full-range
- Pre arc (I2T): 1.1 x 10^3
- Dimensions (H x L x W): 50.8mm x 565mm x 51mm
- Weight: 2.73 kg
Key Features
- Medium voltage fuse-link rated at 16 A and 24 kV AC
- Full-range fuse with high breaking capacity of 35.5 kA
- Includes striker for clear indication of fuse operation
- Clip-in mounting method for easy installation
- Complies with British Standard BS 2692-1
Professional Installation Requirements
- Installation should be performed by a qualified electrical professional to ensure compliance with safety standards and proper operation.
Applications
- Medium voltage electrical systems requiring overcurrent protection
- Industrial electrical installations
- Power distribution networks
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Helps prevent electrical faults and fires, contributing to safer energy distribution
- Durable design reduces need for frequent replacements, minimizing waste
Warranty Information
Warranty terms as provided by Eaton, typically covering manufacturing defects for a specified period.
Available Now
The Eaton 24KV 16AMP 2" Full Range Fuse is available now for immediate purchase. Ideal for medium voltage electrical protection in industrial and power distribution systems.
