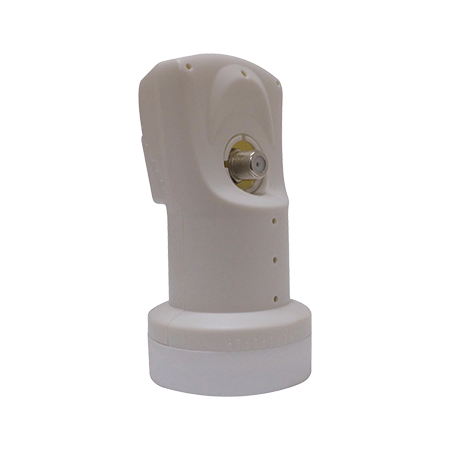

Single Output LNB 10.7 GHz | <0.5 dB Noise Figure | 75 Ohm Impedance by Matchmaster

BRAND: Matchmaster

SKU: 13MM-KU1F

$20.50 List price: $24.80

+ −

30 Days Return Delivery Options

Single output LNB with 10.7 GHz local oscillator frequency and <0.5 dB noise figure—ideal for satellite television and data communication. Built for streamlined connectivity, with 75 Ohm impedance for optimal signal reception.

Description
Attachments

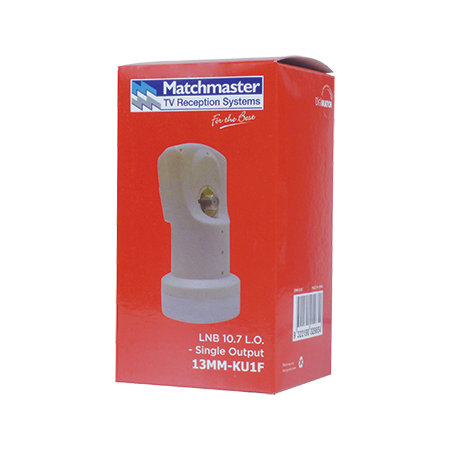

Product Name/Title: LNB 10.7 L.O. - Single Output

Brand: Matchmaster

SKU: 13MM-KU1F

Alternatively Known As: KU Band LNB, Satellite LNB, PLL LNB

Technical Specifications

Reception Frequency: 11.70～12.75GHz
Output Frequency: 950～2050MHz
L.O. Frequency: 10.7GHz
Gain: 60dB
Noise Figure: 0.8dB
Image Rejection: 40dB minimum
Operating Temperature: -30~+70°C
Dimensions (H x L x W): 50mm x 100mm x 100mm
Weight: 0.5 kg

Key Features

10.7GHz local oscillator with output frequency range 950-2050MHz
PLL technology for greater stability
Low current operation
High gain with low noise
Flat output response with +/- 1.0dB across 54MHz bandwidth

Professional Installation Requirements

Professional installation is recommended for optimal performance.

Applications

VAST satellite TV reception
Compatible with various KU band services including free access and pay TV

Environmental Benefits

Energy-efficient design reduces power consumption.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Matchmaster LNB 10.7 L.O. - Single Output is available now for immediate purchase. Ideal for satellite TV reception.

Brochure (13mm-ku1f_brochure.pdf, 230 Kb) [Download]

Full Product Catalogue (full-product-catalogue.pdf, 25,988 Kb) [Download]
