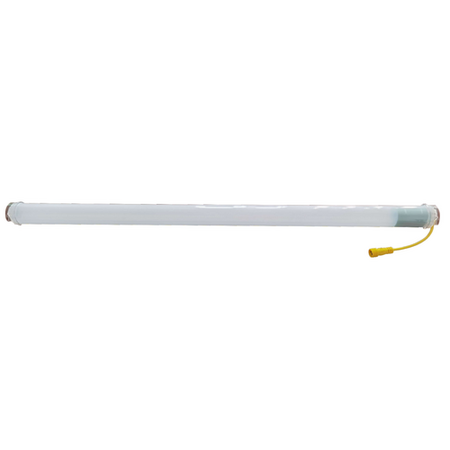

24V Emergency Tube Batten | 18W | IP65 & IK10 Rated | 1 Metre by Lawell Lightning

BRAND: Lawel Lighting
SKU: LW24vB01-E
$54.20 List price: $70.70
+ −
30 Days Return Delivery Options
24V emergency tube batten with 18W power and IP65 & IK10 ratings—ideal for construction sites. Built for flexible installation, with energy-efficient 50,000-hour LED and robust durability.

Product Name/Title: 24V 1Metre Emergency Tube Batten

Brand: Lawell Lightning

SKU: LW24vB01-E

Alternatively Known As: ['24V Emergency Batten', 'Temporary Site Batten', 'Slimline Emergency Light', 'Construction Site Emergency Batten', '4ft Temporary Emergency Batten']

Technical Specifications
  • Input Voltage: 24V
  • Wattage: 18W (normal) / 3W (emergency)
  • Colour Temperature: 5700K
  • IP Rating: IP65
  • Impact Rating: IK10
  • Operating Mode: Maintained
  • Charging Method: Constant Current (<16hrs)
  • Lifetime: 50,000 hours
  • Mounting Type: Suspension or surface mount
  • Battery Chemistry: LiFePo4
  • AS2293 Classification: C0=D40, C90=D32

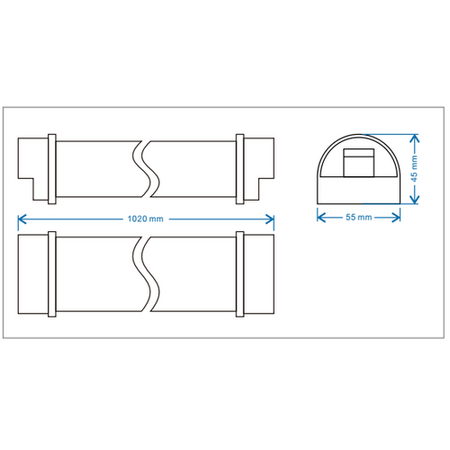

  • Dimensions (H x L x W): 45mm x 1020mm x 55mm
  • Weight: 1.5 kg
Key Features
  • Scalable and flexible installation for changing site requirements
  • 24V flex and IP65 plug for simple plug and play setup
  • Energy efficient, 50,000 hours long-life LED
  • LiFePo4 rechargeable battery for emergency lighting
  • IP65 rated for dust and water resistance
  • IK10 impact rating for robust durability
  • Maintained operating mode
Professional Installation Requirements
  • Installation should be performed by a qualified electrician to ensure compliance with site safety and Australian Standards.
Applications
  • Construction sites: temporary lighting for egress routes and work areas
  • Building sites: scalable and flexible lighting during construction phases
  • Industrial maintenance: emergency and general illumination in temporary setups
Standards & Compliance
  • Complies with AS/NZS 2293 – Emergency Escape Lighting and Exit Signs
  • Complies with AS/NZS 3012 – Electrical Installations on Construction and Demolition Sites
Environmental Benefits
  • Energy-efficient LED reduces power consumption and carbon footprint
  • Long-life design minimizes waste and replacement frequency
  • Rechargeable LiFePo4 battery is more environmentally friendly than traditional chemistries
Warranty Information

3 years warranty against manufacturing defects.

Available Now

Available for immediate purchase. Ideal for temporary emergency and general lighting on construction and building sites.
