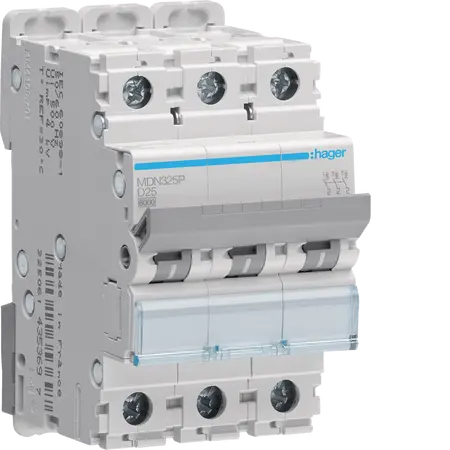

3-Pole Miniature Circuit Breaker 6kA | D-25A | IP20 Rated by Hager

BRAND: :hager
SKU: MDN325P
$189.70 List price: $242.60
+
3-pole miniature circuit breaker with 25A current and 6kA breaking capacity—ideal for residential and commercial electrical installations. Built for safety and reliability, with IP20 protection and wide temperature range.

Product Name/Title: MCB 3P 6kA D-25A 3M

Brand: Hager

SKU: MDN325P

Alternatively Known As: Miniature Circuit Breaker, MCB, 3 Pole Circuit Breaker

Technical Specifications
  • Rated current: 25A
  • Rated operational voltage: 415V
  • Rated insulation voltage: 500V
  • Rated impulse withstand voltage: 6000V
  • Frequency: 50-60Hz
  • Ingress Protection (IP) class: IP20
  • Operating temperature: -25°C to 70°C
  • Dimensions (H x L x W): 84.6mm x 70mm x 52.5mm
  • Weight: 0.5 kg
Key Features
  • 3-pole miniature circuit breaker with a rated current of 25A.
  • Rated short-circuit breaking capacity of 6kA.
  • Wide operating temperature range from -25°C to 70°C.
  • IP20 ingress protection rating.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Residential: Homes, apartments, and electrical installations
  • Commercial: Offices, retail spaces, and industrial applications
Standards & Compliance
  • Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
  • RoHS compliant, contributing to reduced environmental impact.
  • Commitment to improving environmental performance by reducing carbon footprint.
Warranty Information

2 years warranty against manufacturing defects.

Available Now

The Hager MCB 3P 6kA D-25A 3M is available now for immediate purchase. Ideal for residential and commercial electrical installations.
