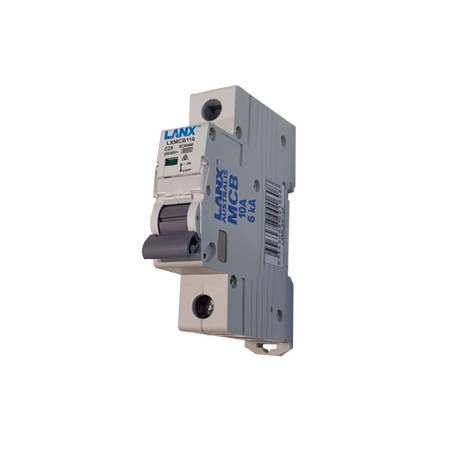

Single Phase Circuit Breaker 10A | 6kA C Curve | 1 Pole
Single phase circuit breaker with 10A rating and 6kA C curve—ideal for residential and commercial electrical systems. Built for dual-protection performance, with high-breaking capacity and reliable installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Single Phase Circuit Breaker 10A | 6kA C Curve | 1 Pole
SKU: LXMCB110
Alternatively Known As: Miniature Circuit Breaker 10A, MCB 10 Amp Single Pole, 1P Circuit Breaker 10A, C Curve MCB 10A
Technical Specifications
- Number of Poles: 1P
- Rated Current: 10A
- Rated Working Voltage: 240/415V
- Rated Frequency: 50/60Hz
- Curve Types Available: B, C, D
- High Short-Circuit Breaking Capacity: 6000A (6kA)
- Instantaneous Tripping Current: 5In (B type), 10In (C type), 20In (D type)
- Instantaneous Non-Tripping Current: 3In (B type), 5In (C type), 10In (D type)
- Mechanical Life: 4000 operations
- Degree of Protection: IP20
- Wiring Mode: Front wiring
- Connecting Conductor Capacity: Up to 16mm²
- Wiring Height: 21.5mm
- Dimensions (H x L x W): 80mm x 70mm x 18mm
- Weight: 0.1 kg
Key Features
- Fine and unique appearance
- Short circuit and overload dual-protection performance
- High-breaking capacity (10kA) leading among similar products
- Unique label with transparent window
- Convenient and reliable installation mode
Professional Installation Requirements
- Installation must be performed by a licensed electrician to ensure compliance with electrical safety standards and proper circuit protection.
Applications
- Residential electrical distribution panels
- Commercial electrical installations
- Industrial control panels requiring single pole protection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Protects electrical circuits to prevent fire hazards and electrical damage
- Enhances energy safety and reduces risk of electrical faults
Warranty Information
Standard manufacturer warranty of 1 year against defects and workmanship.
Available Now
The Single Phase Circuit Breaker 10A | 6kA C Curve | 1 Pole is available now for immediate purchase. Ideal for residential, commercial, and industrial electrical protection applications.
