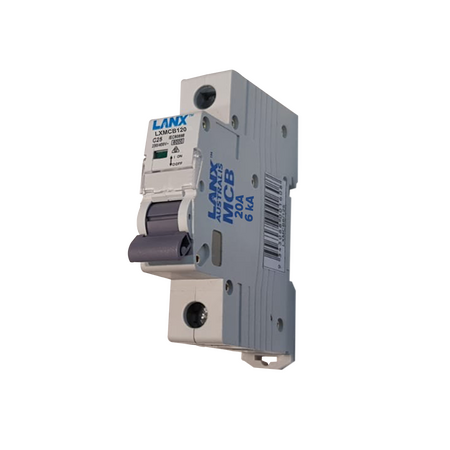

Miniature Circuit Breaker 1P 20A 6kA C Curve 240VAC LANX
The Miniature Circuit Breaker 1P 20A 6kA C Curve 240VAC LANX provides single pole protection for residential, commercial and industrial electrical systems. It features a 20A rated current, 6kA breaking capacity, C Curve tripping and 230/240V AC voltage. The MCB has dimensions of 80mm x 70mm x 18mm and complies with AS/NZS 3000 Wiring Rules for electrical installation. See the product details below for specifications, applications and installation requirements.
Sign in
Please login to continue to your account.
- Rated Current: 20A
- Breaking Capacity: 6kA
- Pole: 1
- Tripping Curve: C Curve
- Voltage Rating: 230/240V AC
- Frequency: 50/60Hz
- Dimensions (H x L x W): 80mm x 70mm x 18mm
- Weight: 0.1 kg
- Single pole design for single phase circuits
- 20 Ampere current rating
- 6kA short circuit breaking capacity
- C curve tripping characteristic for general use
- Installation must be performed by a licensed electrician to ensure compliance with electrical safety standards.
- Residential electrical distribution
- Commercial electrical panels
- Industrial control panels
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Helps prevent electrical fires by interrupting fault currents
- Supports energy efficiency by protecting electrical systems
1 year warranty against manufacturing defects.
The LANX Single Phase Circuit Breaker 20A | 6KA C Curve | 1 Pole is available now for immediate purchase. Ideal for residential, commercial, and industrial electrical protection.
Q: What are the key specifications of the LANX Miniature Circuit Breaker 1P 20A?
A: It has a 20A rated current, 6kA breaking capacity, single pole design, C Curve tripping and 230/240V AC voltage.
Q: Where can the LANX 1P 20A MCB be used?
A: It is suitable for residential electrical distribution, commercial electrical panels and industrial control panels.
For 10A circuit protection, consider a miniature circuit breaker 1P 10A with 6kA C Curve protection.
A miniature circuit breaker 1P 16A provides single pole circuit protection with C Curve tripping.
For two pole protection, consider a miniature circuit breaker 2P 10A with C Curve tripping.
