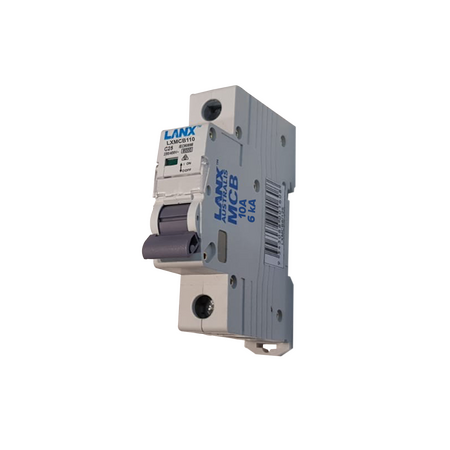

Miniature Circuit Breaker 1P 10A 6kA C Curve IP20 415V LANX

BRAND: LANX
SKU: LXMCB110
$2.70 List price: $4.10
+ −
30 Days Return Electricians Unlock Trade Access
The Miniature Circuit Breaker 1P 10A provides single pole protection for residential, commercial and industrial electrical installations. It features a 10A rated current, 240/415V working voltage, 6kA high short-circuit breaking capacity and C Curve tripping. The MCB has an IP20 degree of protection, front wiring and connection capacity up to 16mm², with dimensions of 80mm x 70mm x 18mm. See the product details below for specifications, applications and installation requirements.
Technical Specifications
  • Number of Poles: 1P
  • Rated Current: 10A
  • Rated Working Voltage: 240/415V
  • Rated Frequency: 50/60Hz
  • Curve Types Available: B, C, D
  • High Short-Circuit Breaking Capacity: 6000A (6kA)
  • Instantaneous Tripping Current: 5In (B type), 10In (C type), 20In (D type)
  • Instantaneous Non-Tripping Current: 3In (B type), 5In (C type), 10In (D type)
  • Mechanical Life: 4000 operations
  • Degree of Protection: IP20
  • Wiring Mode: Front wiring
  • Connecting Conductor Capacity: Up to 16mm²
  • Wiring Height: 21.5mm
  • Dimensions (H x L x W): 80mm x 70mm x 18mm
  • Weight: 0.1 kg
Key Features
  • Fine and unique appearance
  • Short circuit and overload dual-protection performance
  • High-breaking capacity (10kA) leading among similar products
  • Unique label with transparent window
  • Convenient and reliable installation mode
Professional Installation Requirements
  • Installation must be performed by a licensed electrician to ensure compliance with electrical safety standards and proper circuit protection.
Applications
  • Residential electrical distribution panels
  • Commercial electrical installations
  • Industrial control panels requiring single pole protection
Standards & Compliance
  • AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Protects electrical circuits to prevent fire hazards and electrical damage
  • Enhances energy safety and reduces risk of electrical faults
Warranty Information

Standard manufacturer warranty of 1 year against defects and workmanship.

Available Now

The Single Phase Circuit Breaker 10A | 6kA C Curve | 1 Pole is available now for immediate purchase. Ideal for residential, commercial, and industrial electrical protection applications.

FAQ

Q: What is the breaking capacity of the LANX Miniature Circuit Breaker 1P 10A?
A: The MCB has a high short-circuit breaking capacity of 6000A (6kA).

Q: What applications is the LANX 1P 10A MCB suitable for?
A: It is suitable for residential electrical distribution panels, commercial electrical installations and industrial control panels requiring single pole protection.


For a higher rated single pole option, consider a miniature circuit breaker 1P 16A with 6kA C Curve protection.
A miniature circuit breaker 1P 20A provides another single pole circuit protection option.
For a different current rating, use a miniature circuit breaker 1P 25A for single pole protection.

Order with confidence — SCHNAP offers a 30-day return policy on electrical products.
