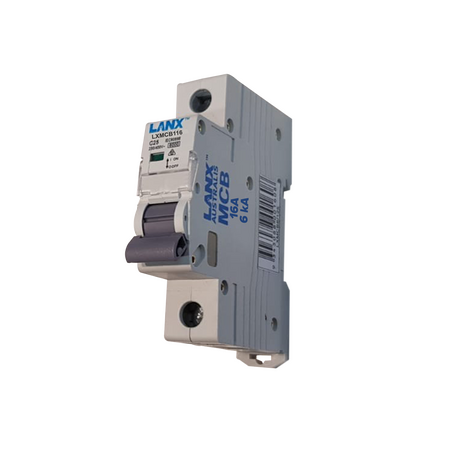

Miniature Circuit Breaker 1P 16A 6kA C Curve 240VAC LANX

BRAND: LANX
SKU: LXMCB116
$2.70 List price: $4.10
+ −
30 Days Return Electricians Unlock Trade Access
The Miniature Circuit Breaker 1P 16A 6kA C Curve 240VAC LANX provides single pole protection for residential, commercial and light industrial electrical systems. It features a 16A rated current, 6kA breaking capacity, C Curve tripping and 230/240V AC voltage. The MCB has dimensions of 85mm x 70mm x 18mm and complies with AS/NZS 3000 Wiring Rules for electrical installation. See the product details below for specifications, applications and installation requirements.
Technical Specifications
  • Rated Current: 16A
  • Breaking Capacity: 6kA
  • Pole: 1
  • Tripping Curve: C Curve
  • Voltage Rating: 230/240V AC
  • Frequency: 50/60Hz
  • Dimensions (H x L x W): 85mm x 70mm x 18mm
  • Weight: 0.1 kg
Key Features
  • Single pole design for single phase circuits
  • 16 Ampere current rating
  • 6kA short circuit breaking capacity
  • C curve tripping characteristic for general use
Professional Installation Requirements
  • Installation must be performed by a licensed electrician to ensure compliance with electrical safety standards.
Applications
  • Residential electrical distribution
  • Commercial electrical panels
  • Industrial single phase electrical protection
Standards & Compliance
  • AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Protects electrical circuits to prevent fire hazards and energy waste
  • Durable design reduces need for frequent replacements
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The LANX Single Phase Circuit Breaker 16A | 6KA C Curve | 1 Pole is available now for immediate purchase. Ideal for residential, commercial, and light industrial electrical protection.

FAQ

Q: What are the key specifications of the LANX Miniature Circuit Breaker 1P 16A?
A: It has a 16A rated current, 6kA breaking capacity, single pole design, C Curve tripping and 230/240V AC voltage.

Q: Where can the LANX 1P 16A MCB be used?
A: It is suitable for residential electrical distribution, commercial electrical panels and industrial single-phase electrical protection.


For a 10A circuit protection option, consider the miniature circuit breaker 1P 10Awith 6kA C Curve protection.
A miniature circuit breaker 1P 20A provides another single pole circuit protection option with C Curve tripping.
For a 25A circuit protection option, use a miniature circuit breaker 1P 25A with C Curve tripping.

Available now from SCHNAP — trusted by Australian electricians and electrical contractors.
