3 Way F Type Splitter 5-2450MHz | One Port Power Pass | Durable Design by Matchmaster
3 way F type splitter with 5-2450MHz frequency range and one port power pass—ideal for television signal distribution. Built for residential and commercial setups, with durable design for reliable performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

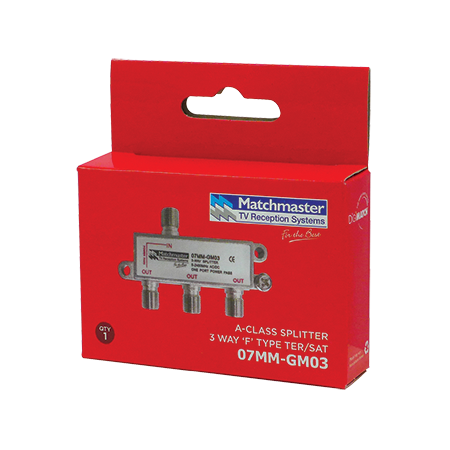

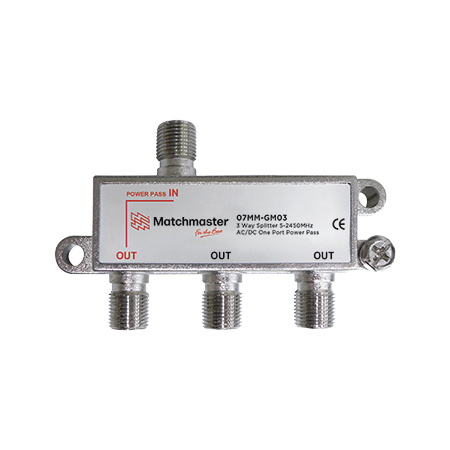

Product Name/Title: 3 Way ‘F’ Type Splitter 5-2450MHz AC/DC One Port Power Pass
Brand: Matchmaster
SKU: 07MM-GM03
Alternatively Known As: 3 Way F Type Splitter, Satellite Splitter, TV Signal Splitter, AC/DC Power Pass Splitter
Technical Specifications
- Insertion Loss: 6.5-9.5dB
- Frequency Range: 5-2450MHz
- Isolation/Outputs: ≥25dB
- Screening: ≥55dB
- AC/DC single port power pass – bidirectional
- Dimensions (H x L x W): 20mm x 60mm x 60mm
- Weight: 0.1 kg
Key Features
- Frequency range: 5-2450MHz
- AC/DC single port power pass – bidirectional
- 10dB extra screening with soldered back
- High port-to-port isolation
- 'F' type fittings for secure connection
Professional Installation Requirements
- Installation by a qualified technician is recommended to ensure proper signal distribution and safety.
Applications
- Satellite TV distribution
- Terrestrial TV connections
- Cable TV signal splitting
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing electronic waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Matchmaster 3 Way ‘F’ Type Splitter 5-2450MHz AC/DC One Port Power Pass is available now for immediate purchase. Ideal for satellite and terrestrial TV signal distribution applications.
