Trade Discount 25%

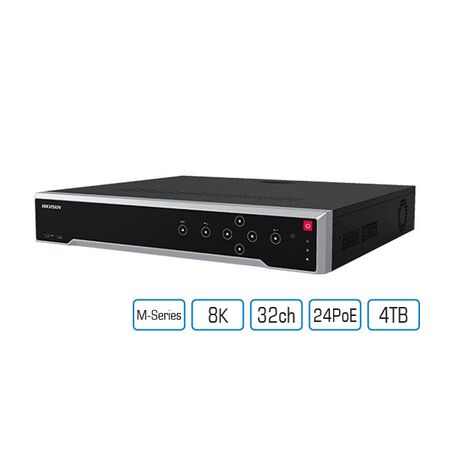

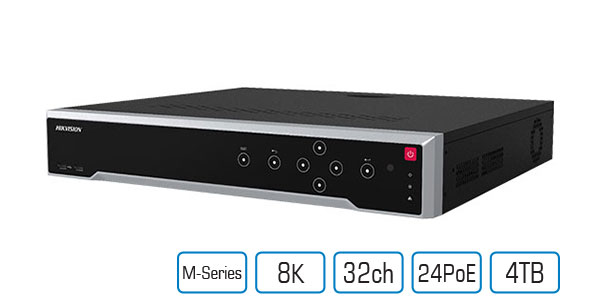

32 Channel 24 PoE M-Series NVR with 4TB HDD Hikvision
Hikvision M-Series NVR features 32 channels, 24 PoE ports and a 4TB HDD. Ideal for CCTV and security installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision M-Series 32-Channel NVR, DS-7732NI-M4/24P, 32CH 24PoE Network Video Recorder
Technical Specifications
- Model: DS-7732NI-M4/24P
- Recorder Type: M-Series 8K network video recorder
- IP Camera Inputs: 32 channels
- PoE Interfaces: 24 independent RJ-45 ports
- PoE Standard: IEEE 802.3af/at
- Maximum Recording Resolution: Up to 32 MP
- Incoming Bandwidth: 320 Mbps
- Outgoing Bandwidth: 400 Mbps
- Video Compression: H.265+/H.265/H.264+/H.264
- HDMI Output: Up to 8K at 30 Hz
- Storage: 4TB HDD installed
- HDD Interfaces: 4 SATA bays, up to 16TB per disk
- Synchronous Playback: 16 channels
- PoE Power Budget: Up to 210 W
- Power Supply: 100–240 VAC, 50–60 Hz
- Operating Temperature: -10°C to 55°C
- Chassis: 19-inch rack-mounted 1.5U
- Dimensions (H x L x W): 72mm x 389mm x 440mm
- Weight: 5.7 kg
Key Features
- Supports up to 32 IP surveillance cameras
- Includes 24 integrated plug-and-play PoE ports
- 8K HDMI video output with independent HDMI and VGA outputs
- Supports cameras up to 32 MP resolution
- H.265+ compression can reduce storage requirements by up to 75 percent
- Four SATA interfaces provide storage expansion capacity
- Supports VCA events including motion, line crossing, intrusion, ANPR and people counting
- Compatible with Hik-Connect and DDNS remote management
- Includes alarm, audio, RS-232, RS-485, USB and eSATA interfaces
- Suitable for medium to large commercial CCTV installations
Professional Installation Requirements
- Installation should be performed by a suitably qualified security, telecommunications or electrical contractor. Mains connection, rack installation, network cabling and PoE camera wiring must comply with applicable Australian requirements and manufacturer instructions. Configure network security, user access and remote connectivity before commissioning.
Applications
- Commercial CCTV systems
- Warehouses and distribution centres
- Industrial facilities and workshops
- Schools, office campuses and retail premises
- Large residential or multi-building surveillance systems
- Centralised recording for IP cameras with direct PoE connection
Standards & Compliance
- RCM certification is stated in the Hikvision manufacturer datasheet.
- AS/NZS 62368.1 is the applicable Australian/New Zealand safety standard for mains-powered information and communication technology equipment; confirm the product declaration and current certification documentation for the supplied Australian variant.
Environmental Benefits
- H.265+ video compression can reduce storage requirements and associated storage-device energy consumption compared with less efficient compression formats.
- Four SATA bays allow storage capacity to be expanded without replacing the recorder, potentially extending product service life.
- Centralised recording and integrated PoE reduce the need for separate network and power hardware in suitable installations.
- The manufacturer states REACH and WEEE certifications, supporting regulated substance management and end-of-life recycling processes.
Warranty Information
Hikvision Oceania lists a five-year warranty for eligible Ultra Series network video recorders manufactured after 1 March 2022. The DS-7732NI-M4/24P is identified within Hikvision's Ultra 7 Series NVR range; confirm eligibility by model, serial number and purchase channel. The separately supplied or installed 4TB HDD may have a different warranty period.
Available Now
Available through Hikvision and authorised Australian security, CCTV and electronic-security distributors; confirm current distributor stock and Australian-region firmware before ordering.
