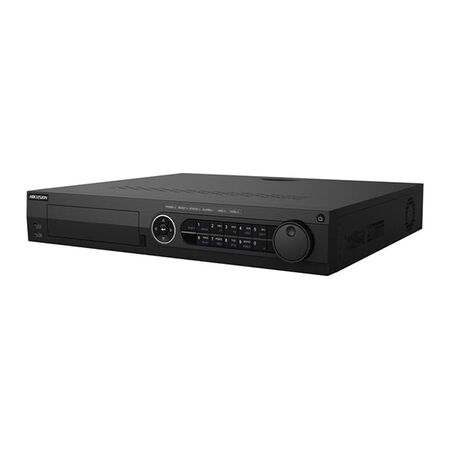

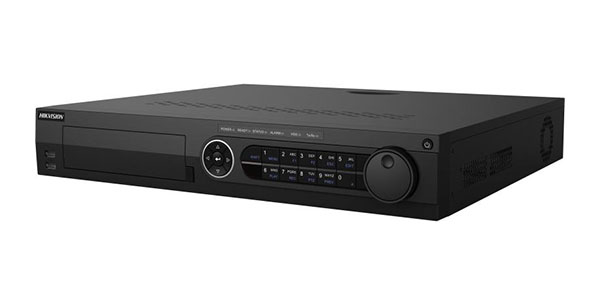

32 Channel DVR no HDD Hikvision
Hikvision 32 channel DVR features no HDD supplied. Ideal for CCTV surveillance installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision 32-Channel DVR, Hikvision AcuSense DVR, Hikvision TurboHD DVR, iDS-7332HUHI-M4/S
Technical Specifications
- Channel Capacity: 32 analogue channels; up to 64 network camera inputs
- Video Inputs: HDTVI, AHD, HDCVI, CVBS and IP
- Encoding Capability: Up to 8 MP at 8 fps or 5 MP at 12 fps
- Video Compression: H.265 Pro+, H.265 Pro, H.265, H.264+ and H.264
- Storage Interfaces: 4 SATA interfaces and 1 eSATA interface
- Maximum Storage: Up to 12 TB per SATA drive
- Network Interfaces: 2 x 10/100/1000 Mbps Ethernet
- Video Outputs: 2 x HDMI and 1 x VGA
- Alarm I/O: 16 alarm inputs and 4 alarm outputs
- Audio: 4-channel RCA input and 1-channel RCA output
- Playback: 16-channel synchronous playback
- Power Supply: 100–240 V AC, 50/60 Hz
- Power Consumption: Up to 55 W without HDD
- Operating Temperature: -10°C to +55°C
- Operating Humidity: 10% to 90% RH, non-condensing
- Remote Access: Hik-Connect, web browser, iVMS-4200 and Hik-Central support
- Dimensions (H x L x W): 71mm x 400mm x 445mm
- Weight: 7 kg
Key Features
- Supports up to 32 analogue CCTV cameras
- Supports up to 64 IP camera inputs when configured for network camera operation
- AcuSense deep-learning human and vehicle classification
- H.265 Pro+ compression helps reduce recording storage and network bandwidth requirements
- Supports HDTVI, AHD, HDCVI, CVBS and IP camera formats
- Four internal SATA bays allow storage to be specified separately
- No HDD supplied, allowing the installer to select a compatible surveillance-grade drive
- 4K-capable video output and recording support
- RAID 0, 1, 5, 6 and 10 storage schemes supported
- Hik-Connect remote monitoring and management
Professional Installation Requirements
- Installation should be performed by a suitably qualified CCTV and electrical technician. Mains connection, camera cabling, network configuration and HDD installation must follow applicable electrical, manufacturer and site requirements.
Applications
- Commercial CCTV surveillance installations
- Retail shops and offices
- Warehouses and industrial facilities
- Schools, strata properties and public buildings
- Security upgrades using existing coaxial camera cabling
- Mixed analogue and IP video surveillance systems
Standards & Compliance
- Relevant system standard: AS/NZS 62676.1.1:2020 for video surveillance systems used in security applications
- AS/NZS 62676.3:2020 is relevant to analogue and digital video interfaces; product-specific certification should be confirmed from the supplied compliance documentation
Environmental Benefits
- H.265 Pro+ compression can reduce storage capacity and network bandwidth requirements compared with less efficient video codecs
- No HDD is supplied, allowing selection of an appropriately sized, replaceable surveillance drive and avoiding unnecessary storage hardware
- Replaceable internal storage can extend the usable service life of the recorder and reduce electronic waste
- Long-term remote management and monitoring can reduce unnecessary site visits
Warranty Information
Hikvision Australia’s standard RMA policy lists a 36-month default warranty for 7 Series and 8/9 Series DVR products. Confirm warranty eligibility and terms with the authorised Australian distributor for the exact model and sales channel.
Available Now
Available through Hikvision and authorised Australian security-equipment distributors, subject to distributor stock and regional model availability.
