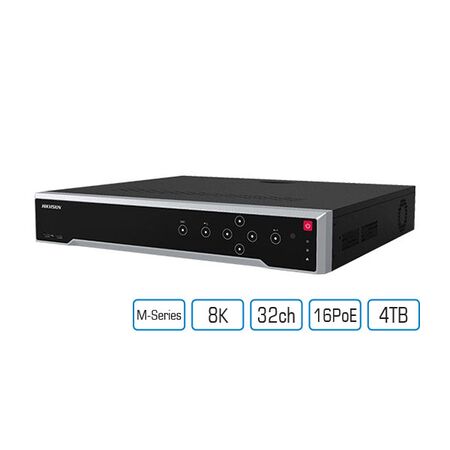

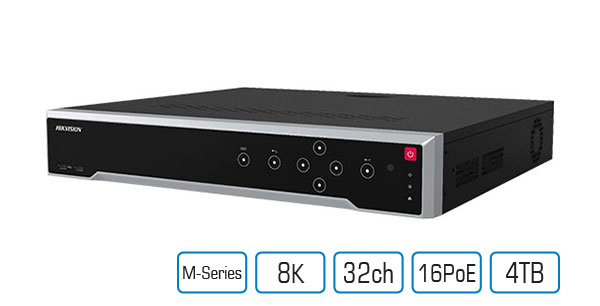

32 Channel M-Series NVR with 4TB HDD Hikvision
Hikvision M-Series NVR features 32 channels and a 4TB HDD. Ideal for CCTV and security installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision DS-9632NI-M8-4TB, 32-Channel IP NVR, Ultra M-Series NVR, 8K CCTV Network Video Recorder
Technical Specifications
- Model: DS-9632NI-M8-4TB
- Video Inputs: Up to 32 IP camera channels
- Maximum Recording Resolution: Up to 32MP
- Incoming Bandwidth: Up to 320 Mbps
- Outgoing Bandwidth: Up to 400 Mbps
- Video Compression: H.265+, H.265, H.264+ and H.264
- Installed Storage: 4TB surveillance HDD
- HDD Bays: 8 hot-plug SATA interfaces
- Maximum HDD Capacity: Up to 14TB per drive
- RAID: RAID 0, 1, 5, 6 and 10
- Video Outputs: 2 HDMI and 2 VGA
- Maximum HDMI Output: Up to 8K at 30Hz via HDMI 1
- Network Interfaces: 2 x RJ45 Gigabit Ethernet
- Alarm Interfaces: 16 inputs and 9 outputs
- USB Interfaces: 2 x USB 2.0 front and 2 x USB 3.0 rear
- Power Supply: 100-240VAC, 50-60Hz
- Power Consumption: Up to 50W without HDD
- Operating Temperature: -10°C to 55°C
- Operating Humidity: 10% to 90% non-condensing
- Chassis: 2U rack-mount
- Certifications: CE and FCC
- Dimensions (H x L x W): 93mm x 465mm x 445mm
- Weight: 10 kg
Key Features
- Supports up to 32 IP camera channels
- 8K display output through the primary HDMI interface
- Supports cameras and recording resolutions up to 32MP
- Pre-installed 4TB surveillance hard drive
- Eight hot-plug SATA bays for expanded storage
- RAID support for storage redundancy and improved data resilience
- H.265+ compression reduces recording storage and network bandwidth requirements
- Dual HDMI and dual VGA outputs for multi-monitor control rooms
- Supports Hik-Connect, ONVIF and remote network management
- Non-PoE design requires cameras to connect through a separate PoE switch or network switch
Professional Installation Requirements
- Installation should be completed by a suitably qualified security or electrical installer. Mains connection, rack mounting, network configuration, camera commissioning and compliance with applicable Australian electrical and communications requirements should be performed by competent personnel.
Applications
- Commercial CCTV surveillance systems
- Large residential and multi-dwelling security installations
- Retail, warehouse and logistics monitoring
- Industrial and manufacturing site surveillance
- Schools, hospitals and institutional security systems
- Multi-camera IP video recording with centralised monitoring
Standards & Compliance
- AS/NZS 62368.1:2026: applicable safety standard framework for audio, video and information and communication technology equipment; verify the product-specific Australian declaration of conformity and RCM status before installation
- AS/NZS CISPR 32: applicable electromagnetic compatibility standard for multimedia equipment; verify product-specific Australian conformity documentation
Environmental Benefits
- H.265+ compression can reduce storage and network bandwidth requirements, potentially lowering system energy consumption
- RAID and hot-plug storage support can extend system service life and reduce premature equipment replacement
- Replaceable surveillance HDDs support repair and component-level replacement rather than disposal of the complete NVR
- Long-term recording efficiency can reduce the quantity of storage hardware required for equivalent surveillance retention
Warranty Information
Hikvision Australia lists a five-year manufacturer warranty for qualifying Ultra Series network video recorders manufactured after 1 March 2022. Warranty eligibility depends on Australian authorised distribution and the applicable product documentation.
Available Now
Available through Hikvision and authorised Australian security, CCTV and electronic security distributors.
