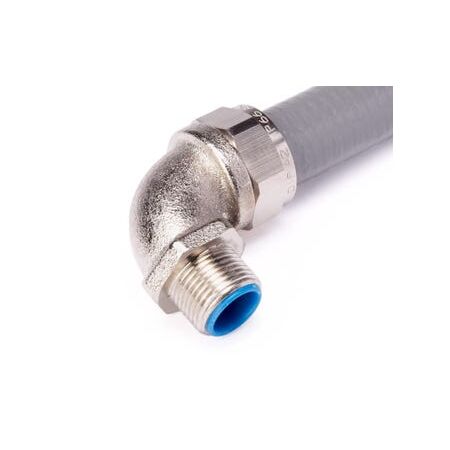

32mm Liquid Tight 90 Degree M32 IP66 Nickel-Plated Brass Cabac
Cabac Liquid Tight Conduit Fitting 90 Degree M32 IP66 Rated features nickel-plated brass finish. Suited for AS NZS 2053 conduit installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connector body: Nickel plated brass
- Hexagonal nut: Nickel plated brass
- Sealing ring: Nylon 66
- Ferrule: Galvanised steel
- Thread size: M32 x 1.5
- Conduit size: 32mm
- Tested and Certified to IEC60079-0: 2007-10 and IEC60079-31: 2008
- Ex ta IIIC IP66 Hazardous Area Type Protection
- IEC Ex TSA 11.0026 Hazard Area Certification Number
- Dimensions (H x L x W): 46.5mm x 82mm x 55mm
- Weight: 0.15 kg
Key Features
- Nickel plated brass construction for superior durability
- 90-degree male thread fitting with external thread for threaded entries and knockouts
- High chemical resistance and mechanical strength
- Dust proof and liquid tight seal
- Supplied with sealing ring and flanged grounding cone for excellent pull-out strength
- One-piece installation with swivel fitting on conduit until tightened
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with hazardous area wiring standards and proper sealing.
Applications
- Machining centres and robotics
- General wiring for OEM applications
- Low fire hazard applications
- Underfloor wiring in office buildings
- Narrow space static applications
Standards & Compliance
- AS/NZS 60035 – Electrical Equipment in Explosive Atmospheres
Environmental Benefits
- Durable nickel plating extends product life reducing waste
- Provides secure sealing to prevent ingress of dust and liquids, protecting electrical systems and reducing maintenance
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty terms for details.
Available Now
The Cabac Nickel Plated Brass Liquid Tight 90 Degree Fitting M32 is available now for immediate purchase. Ideal for industrial and commercial hazardous area conduit installations.
FAQ
Q: What conduit size is this fitting designed for?
A: This fitting is designed for 32mm conduit and features an M32 x 1.5 external thread.
Q: Is this fitting suitable for hazardous area applications?
A: Yes. It is tested and certified to IEC60079-0, IEC60079-31 and complies with AS/NZS 60035 for hazardous area electrical equipment.
Pair this installation with a liquid tight conduit fitting 45 degree where conduit routing requires a smoother change in direction.
A liquid tight conduit fitting stainless steel option is available for installations requiring enhanced corrosion resistance.
Include an inspection tee to provide convenient access for conduit inspection and maintenance.
