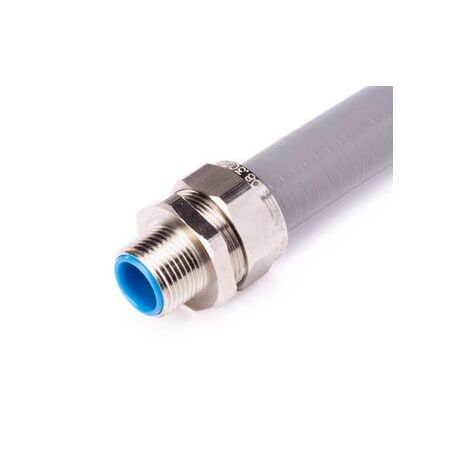

32mm Liquid Tight Conduit M32 IP66 Nickel-Plated Brass Cabac
Cabac Liquid Tight Conduit Fitting M32 IP66 Protection features nickel-plated brass finish. Suited for AS NZS 2053 conduit installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connector body: Nickel plated brass
- Hexagonal nut: Nickel plated brass
- Sealing ring: Nylon 66
- Ferrule: Galvanised steel
- Thread size: M32 x 1.5
- Conduit size: 32mm
- Tested and Certified to IEC60079-0: 2007-10 and IEC60079-31: 2008
- Ex ta IIIC IP66 Hazardous Area Type Protection
- IEC Ex TSA 11.0026 Hazard Area Certification Number
- Dimensions (H x L x W): 28mm x 16.3mm x 46.5mm
- Weight: 0.1 kg
Key Features
- Nickel plated brass construction for superior durability
- Liquid tight seal providing dust and moisture protection
- High chemical resistance and mechanical strength
- One-piece installation with swivel fitting for easy use
- Complete with sealing ring and flanged grounding cone for excellent pull-out strength
- External male thread for secure attachment to enclosures, machinery, or bulkheads
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with safety standards and proper sealing.
Applications
- Machining centres and robotics
- General wiring for OEM applications
- Low fire hazard applications
- Underfloor wiring in office buildings
- Narrow space static installations
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable nickel plating extends product life reducing waste
- Provides secure sealing to prevent ingress of contaminants, protecting wiring and reducing maintenance needs
Warranty Information
Warranty details available upon request from manufacturer.
Available Now
The Cabac Nickel Plated Brass Liquid Tight Straight Conduit Fitting M32 is available now for immediate purchase. Ideal for industrial and commercial wiring protection applications.
FAQ
Q: What conduit size is this liquid tight fitting designed for?
A: This fitting is designed for 32mm conduit and features an M32 x 1.5 external thread.
Q: What applications is this fitting suitable for?
A: It is suitable for machining centres, robotics, OEM wiring, low fire hazard applications, underfloor office buildings, and narrow space static installations.
Pair this fitting with a liquid tight conduit fitting 90 degree where conduit routing requires a right-angle connection.
Add a liquid tight conduit fitting 45 degree when conduit runs need a controlled change in direction around equipment.
Use an internal reducer fitting PVC when adapting conduit systems between different conduit sizes.
Review the conduit fittings Australia guide to help choose suitable conduit connection components for your installation.
