3KV CATV Isolator | 5-1000MHz | Compact Design
CATV isolator with 5-1000MHz frequency range and built-in 3KV high voltage capacitor—ideal for reducing 4G interference. Designed for both indoor and outdoor use, with a compact metal housing for durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

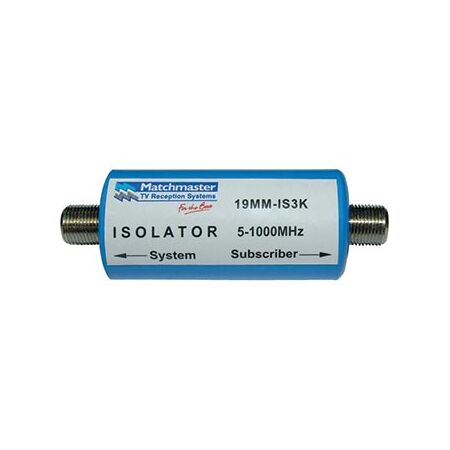

Product Name/Title: 3KV CATV Isolator | 5-1000MHz | Compact Design
SKU: 19MM-IS3K
Alternatively Known As: CATV Isolator 3KV, 75 Ohm Isolator, High Voltage CATV Isolator, LTE Interference Isolator
Technical Specifications
- Frequency Range: 5-1000MHz
- Insertion Loss (dB): 1.2 (5-30MHz), 1 (30-550MHz), 1.2 (550-860MHz), 1.2 (860-1000MHz)
- Return Loss (dB): 11 (5-30MHz), 17 (30-550MHz), 14 (550-860MHz), 14 (860-1000MHz)
- Impulse High Voltage: 3KVDC for 3 seconds at 1mA, no arc or through
- Impedance: 75 Ohm
- Housing: Protective metal
- Dimensions (H x L x W): 30mm x 80mm x 50mm
- Weight: 0.2 kg
Key Features
- Protective metal housing
- Small compact design
- Built-in 3KV high voltage capacitor
- Frequency range 5-1000MHz
- Suitable for 75 Ohm systems up to 3GHz
Professional Installation Requirements
- Installation by a qualified technician is recommended to ensure proper integration and safety in CATV systems.
Applications
- Indoor and outdoor CATV systems
- 75 Ohm systems requiring interference reduction
- 4G (LTE) interference mitigation in cable TV networks
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Enhances system efficiency by reducing interference, minimizing signal loss and waste.
- Durable metal housing extends product life, reducing replacement frequency.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Matchmaster 3KV CATV Isolator is available now for immediate purchase. Ideal for enhancing CATV system performance and protecting against high voltage surges.
