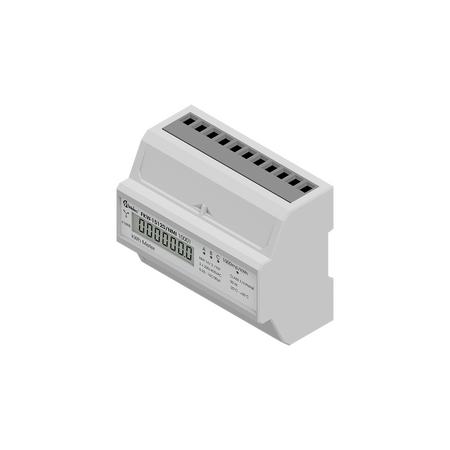

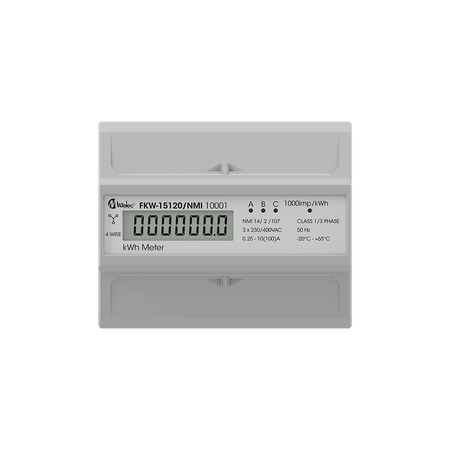

3Ph 100A DIN Kilowatt Hour Meter | NMI Approved | 400V AC | Matelec

Trade Discount 23%
BRAND: Matelec
SKU: FKW-15120/NMI
$473.70 List price: $617.50
+
Three-phase kilowatt hour meter with 100A current rating and 400V AC—ideal for residential, commercial, and industrial energy monitoring. Built for accurate measurement, with NMI approval and easy DIN rail installation.

Product Name/Title: 3Ph 100A NMI Approved DIN Kilowatt Hour Meter

Brand: Matelec

SKU: FKW-15120/NMI

Alternatively Known As: Three-Phase Energy Meter, KWh Meter, DIN Kilowatt Meter

Technical Specifications
  • Current Rating: 100A
  • Voltage: 400V AC
  • Frequency: 50Hz
  • Accuracy Class: 1.0
  • Temperature Range: -10°C to +55°C
  • Dimensions (H x L x W): 100mm x 60mm x 70mm
  • Weight: 1.5 kg
Key Features
  • NMI approved for accurate energy measurement.
  • DIN rail mountable for easy installation.
  • Three-phase measurement for diverse applications.
Professional Installation Requirements
  • Installation by a licensed electrician is required to ensure safety and compliance.
Applications
  • Residential: Energy monitoring in homes
  • Commercial: Usage tracking in businesses
  • Industrial: Monitoring energy consumption in factories
Standards & Compliance
  • Complies with AS/NZS 62053 for measuring instruments.
Environmental Benefits
  • Accurate measurement promotes energy efficiency and reduces waste.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The 3Ph 100A NMI Approved DIN Kilowatt Hour Meter is available now for immediate purchase. Ideal for residential, commercial, and industrial applications.

Specification Sheet (FKW-15120-NMI-Spec-Sheet.pdf, 343 Kb) [Download]
