Single Phase Kilowatt Hour Meter | 100A NMI Approved | DIN Rail Mount | 230V by Matelec
Single phase kilowatt hour meter with 100A capacity and NMI approval—ideal for residential and commercial energy monitoring. Built for accurate electrical consumption measurement, with easy DIN rail installation.
Sign in
Please login to continue to your account.

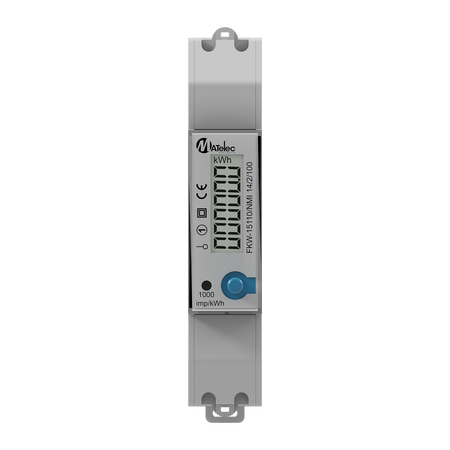

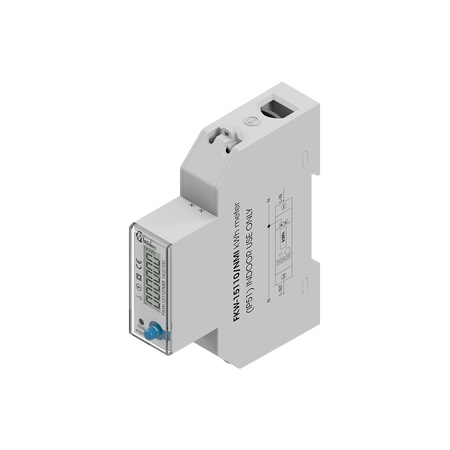

Product Name/Title: 1Ph 100A NMI Approved DIN Kilowatt Hour Meter
Brand: Matelec
SKU: FKW-15110/NMI
Alternatively Known As: Single Phase Kilowatt Hour Meter, DIN Meter, NMI Meter
- Rated Current: 100A
- Phase: Single phase
- Accuracy Class: 1
- Mounting: DIN rail
- Operating Voltage: 230V
- Frequency: 50Hz
- Dimensions (H x L x W): 100mm x 60mm x 75mm
- Weight: 1.5 kg
- NMI approved for compliance and reliability.
- DIN rail mountable for easy installation.
- Accurate measurement of electrical consumption.
- Professional installation by a qualified electrician is recommended for accurate setup and safety.
- Residential: Homes, apartments
- Commercial: Office buildings, retail stores
- Complies with AS/NZS 62052.11 and AS/NZS 62053.21 for electric meters.
- Supports energy monitoring and efficiency improvements.
1 year warranty against manufacturing defects.
The 1Ph 100A NMI Approved DIN Kilowatt Hour Meter is available now for immediate purchase. Ideal for residential and commercial energy monitoring applications.
