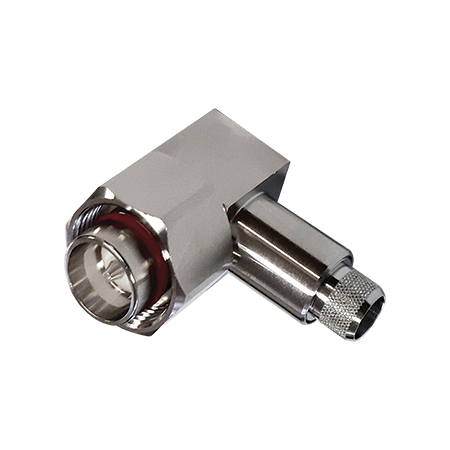

4.3-10 Right Angled Plug for LL400/LMR400 50 Ohm Spring Finger

4.3-10 Right Angled Plug | LL400/LMR400 | 50 Ohm Spring Finger by Matchmaster

BRAND: Matchmaster

SKU: 56MM-43-10PRA

$105.50 List price: $127.70

+ −

30 Days Return Delivery Options

4.3-10 right angled plug with 50 Ohm impedance and spring finger design—ideal for telecommunications and networking. Built for LL400 and LMR400 cables, ensuring enhanced connectivity and signal integrity.

Description
Attachments

Product Name/Title: 4.3-10 Right Angled Plug for LL400/LMR400 50 Ohm Spring Finger

Brand: Matchmaster

SKU: 56MM-43-10PRA

Alternatively Known As: 4.3-10 Right Angle Connector, 4.3-10 Plug for LL400, 4.3-10 Coaxial Connector

Technical Specifications

Impedance: 50Ω
Frequency Range: DC to 6GHz
Temperature Range: -45 to +125 °C
Material: Brass body with SUCO plating, beryllium copper silver-coated centre pin
Dielectric: Teflon (PTFE)
Waterproofing: Internal silicon rubber gasket
Passive Intermodulation: (2 x 20W) -150dBc
Dimensions (H x L x W): 20mm x 40mm x 20mm
Weight: 0.05 kg

Key Features

Right-angled 4.3-10 connector compatible with 56MM-E400 series cable
50Ω nominal impedance with DC-6GHz frequency range
Temperature range from -45 to +125 degrees Celsius
Brass body with SUCO plating and beryllium copper silver-coated centre pin
Internal silicon rubber gasket for waterproofing
Passive intermodulation: (2 x 20W) -150dBc

Professional Installation Requirements

Installation by a qualified technician or RF specialist is recommended to ensure proper connection and performance.

Applications

Cellular and 2-Way Radio systems
Use with 10mm solid core 50 ohm coax LL400/LMR400 cables
Suitable for RF and communication equipment requiring right-angled connectors

Standards & Compliance

Complies with AS/NZS 60950 – Safety of IT and Communication Equipment

Environmental Benefits

Durable materials reduce the need for frequent replacements, minimizing waste
Waterproof design prevents damage and extends product lifespan

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Matchmaster 4.3-10 Right Angled Plug for LL400/LMR400 50 Ohm Spring Finger is available now for immediate purchase. Ideal for cellular and 2-way radio communication systems.

Brochure (56mm-43-10pra_brochure.pdf, 597 Kb) [Download]

Full Product Catalogue (full-product-catalogue.pdf, 25,988 Kb) [Download]
