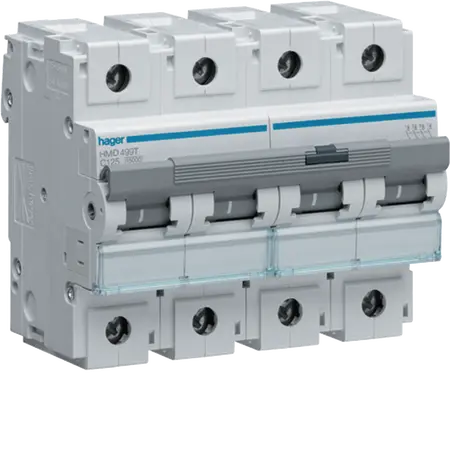

4 Pole Circuit Breaker 80A | 15kA Breaking Capacity | Screw Terminal | Hager

BRAND: :hager
SKU: HMD480T
$921.70 List price: $1,178.60
+
4 pole circuit breaker with 80A rated current and 15kA breaking capacity—ideal for residential and commercial electrical installations. Built for secure installation with screw terminals, suitable for various climate conditions.

Product Name/Title: MCB 4P 15kA D-80A 6M

Brand: Hager

SKU: HMD480T

Alternatively Known As: Miniature Circuit Breaker, MCB, 4 Pole Circuit Breaker, HMD480T

Technical Specifications
  • Rated operational voltage: 415V AC
  • Rated insulation voltage: 500V
  • Rated impulse withstand voltage: 6000V
  • Frequency: 50 - 60 Hz
  • Nominal tightening torque: 3.5 - 5.0 Nm
  • Electric current: Rated current 80A
  • Endurance: 4000 electrical cycles, 20000 mechanical operations
  • Cross-section for massive conductors: 1 - 70 mm²
  • Cross-section for flexible conductors: 1 - 50 mm²
  • Dimensions (H x L x W): 90mm x 70mm x 106mm
  • Weight: 0.5 kg
Key Features
  • 4-pole design for three-phase systems
  • Rated current of 80A with a breaking capacity of 15kA
  • Screw terminal connections for secure installation
  • Suitable for use in various climate conditions
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Residential: Homes, apartments, and electrical installations
  • Commercial: Offices, retail spaces, and industrial applications
Standards & Compliance
  • Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
  • RoHS and REACH compliant, contributing to reduced environmental impact.
Warranty Information

2 years warranty against manufacturing defects.

Available Now

The Hager MCB 4P 15kA D-80A 6M is available now for immediate purchase. Ideal for residential and commercial electrical installations.

HMD480T (HMD480T, 166 Kb) [Download]

(PEP_HAGER_HAGE-00715-V01.01-EN_23092022.pdf, 377 Kb) [Download]

reach_declaration_HMD480T5.pdf (reach_declaration_HMD480T5.pdf, 103 Kb) [Download]

rohs_declaration_HMD480T5.pdf (rohs_declaration_HMD480T5.pdf, 104 Kb) [Download]

(DECLARATION_21_2310_07_21.pdf, 101 Kb) [Download]

(DECLARATION_23_2310_05_23.pdf, 455 Kb) [Download]
