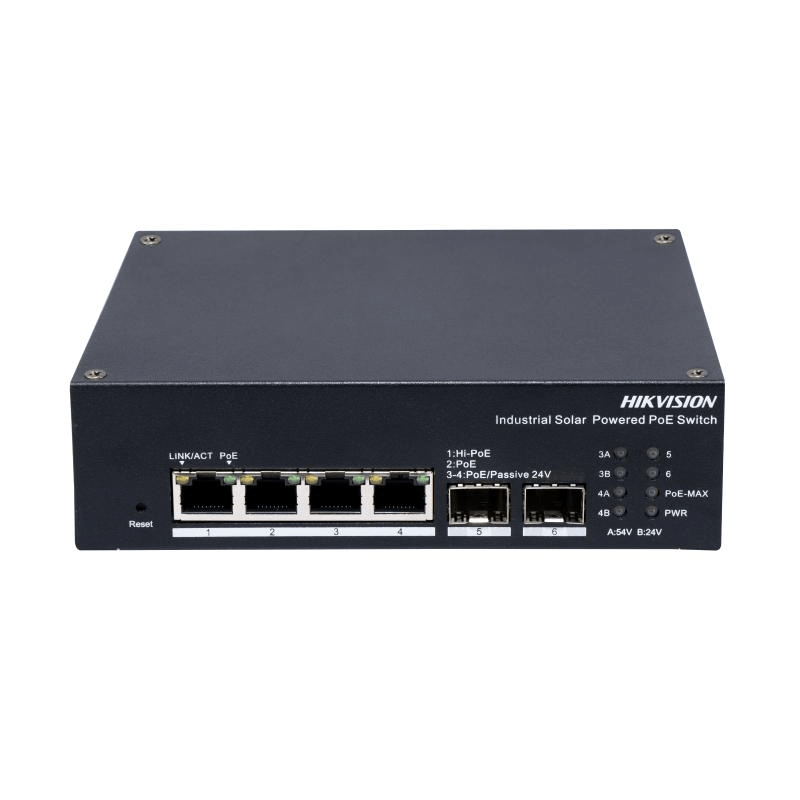

4 Port Gigabit Managed Industrial Solar PoE Switch | 802.3bt Hi-PoE Support | 6 kV Surge Protection | by HIKVISION
The 4 Port Gigabit Managed Industrial Solar PoE Switch is designed for robust network environments, featuring 4 Gigabit PoE ports and support for 802.3bt Hi-PoE with a maximum of 90W per port. Ideal for solar-powered installations and outdoor setups, it offers battery health monitoring and power consumption scheduling, ensuring reliable performance in harsh conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 4 Port Gigabit Managed Industrial Solar PoE Switch | 802.3bt Hi-PoE Support | 6 kV Surge Protection | by HIKVISION
Brand: HIKVISION
SKU: DS-3T1506HP-EI-UPS
Alternatively Known As: Industrial PoE Switch, Solar PoE Switch, Managed Gigabit PoE Switch, Outdoor PoE Switch
Technical Specifications
- 4 x Gigabit PoE Ports, 2 × Gigabit SFP ports
- Supports 802.3bt Hi-PoE with max 90 W per port
- 24 V passive PoE output support
- Solar power input support from 12 V to 24 V, DC 54 V input
- Operating temperature range: -40 °C to 75 °C
- Battery health monitoring via Hik-Partner Pro and Hik-Connect
- Power consumption scheduling supported
- 6 kV Surge Protection
- Dimensions (H x L x W): 45mm x 150mm x 200mm
- Weight: 1.5 kg
Key Features
- 4 x Gigabit PoE Ports and 2 × Gigabit SFP ports
- Supports 802.3bt Hi-PoE with max 90 W power per port
- Supports 24 V passive PoE output for wireless bridge applications
- Supports 12 V to 24 V solar power input and DC 54 V input
- Wide operating temperature range from -40 °C to 75 °C
- Battery health monitoring via Hik-Partner Pro and Hik-Connect
- Power consumption scheduling capability
- 6 kV Surge Protection for enhanced durability
Professional Installation Requirements
- Installation by a qualified electrician or network professional is recommended to ensure proper setup and compliance with electrical and network standards.
Applications
- Industrial network environments requiring robust PoE switch solutions
- Solar-powered network installations
- Outdoor and harsh environment network setups
- Wireless bridge power supply and network management
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Supports solar power input reducing reliance on traditional power sources
- Energy-efficient PoE technology minimizes power consumption
- Durable design reduces electronic waste by extending product lifespan
Warranty Information
2 years warranty provided by HIKVISION against manufacturing defects.
Available Now
The HIKVISION 3T1506HP-EI-UPS 4 Port Gigabit Managed Industrial Solar PoE Switch is available for immediate purchase, ideal for industrial and solar-powered network applications.
