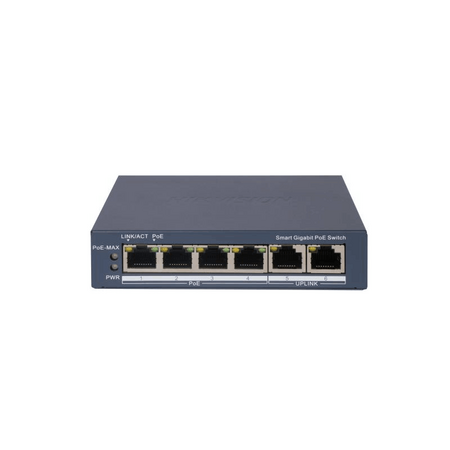

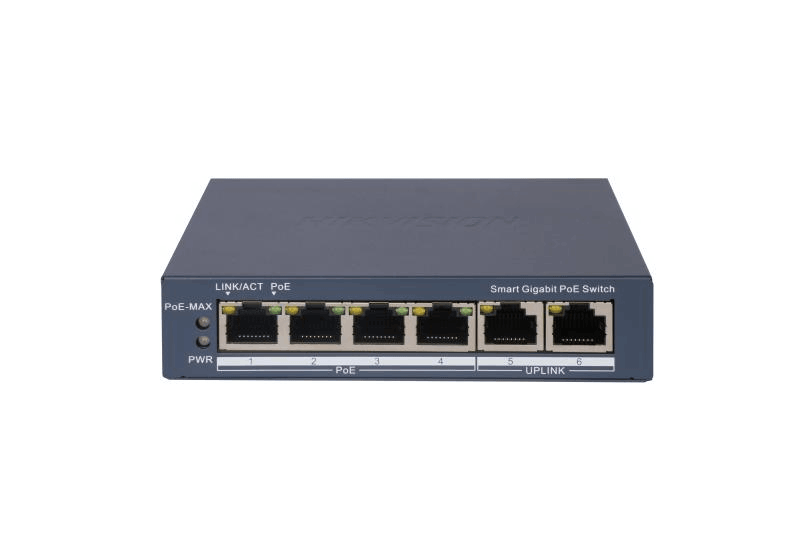

4 Port Managed Gigabit PoE Switch | 60W Power Budget | VLAN Support & PoE Watchdog | by HIKVISION
The 4 Port Managed Gigabit PoE Switch is designed for efficient network infrastructure, featuring 4 Gigabit PoE ports and a total power budget of 60W. Ideal for small to medium businesses and IP camera surveillance systems, it supports VLAN for network segmentation and includes a PoE watchdog to ensure unresponsive devices are automatically restarted.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 4 Port Managed Gigabit PoE Switch | 60W Power Budget | VLAN Support & PoE Watchdog | by HIKVISION
Brand: HIKVISION
SKU: DS-3E1506P-EI
Alternatively Known As: HIKVISION 3E1506P-EI PoE Switch, Managed Gigabit PoE Switch, 4 Port PoE Network Switch
Technical Specifications
- 4 × Gigabit PoE ports and 2 × Gigabit RJ45 ports
- Total PoE power budget: 60W
- Supports 802.1Q VLAN
- PoE watchdog to detect and restart unresponsive cameras
- Supports STP/RSTP loop prevention
- Cable detection for failure location
- Long range PoE transmission up to 300 meters
- 6KV surge protection
- Dimensions (H x L x W): 30mm x 100mm x 150mm
- Weight: 0.5 kg
Key Features
- 4 × Gigabit PoE ports and 2 × Gigabit RJ45 ports
- Total PoE power budget of 60W
- Supports 802.1Q VLAN for network segmentation
- PoE watchdog feature to detect and restart unresponsive cameras
- STP/RSTP loop prevention support
- Cable detection to locate network failures
- Up to 300 m long range PoE transmission
- 6KV surge protection for enhanced device safety
Professional Installation Requirements
- Professional installation by a qualified network technician or electrician is recommended to ensure proper configuration and safety compliance.
Applications
- Network infrastructure for small to medium businesses
- IP camera surveillance systems
- Long range PoE device connectivity
- Managed network environments requiring VLAN and loop prevention
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Supports energy-efficient PoE technology reducing power consumption
- Long range PoE reduces need for additional power sources and cabling
Warranty Information
2 years warranty from the manufacturer covering defects and hardware failures.
Available Now
The HIKVISION TRANSMISSION 3E1506P-EI 4 Port Managed Gigabit PoE Switch is available for immediate purchase, ideal for network and surveillance system installations.
