4 Way 8dB Terminated High Isolation Tap | 5-1000 MHz | F-Type Connectors by Matchmaster
4 way terminated high isolation tap with 8dB isolation and 5-1000 MHz frequency range—ideal for MATV and satellite installations. Built for superior signal quality, with F-Type connectors and minimal interference.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

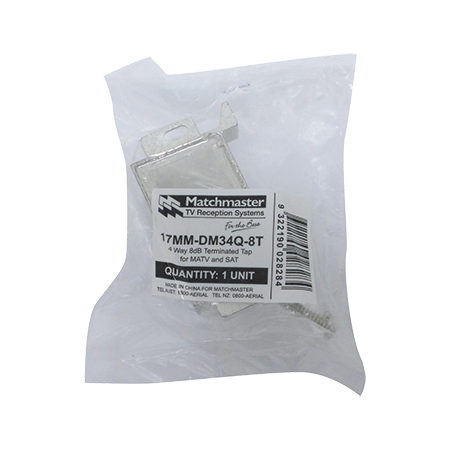

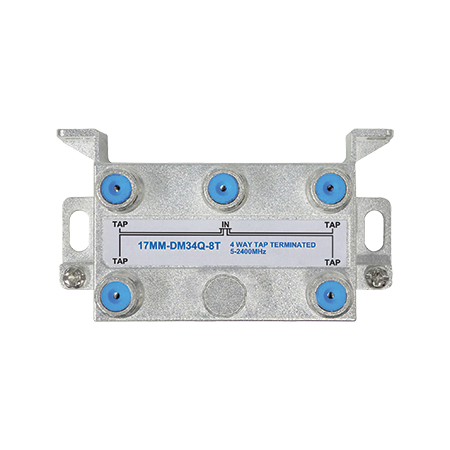

Product Name/Title: 4 Way 8dB Terminated High Isolation Tap for MATV and Satellite
Brand: Matchmaster
SKU: 17MM-DM34Q-8T
Alternatively Known As: 4 Way 8dB Tap, High Isolation Satellite Tap, MATV Tap, Terminated Signal Tap
Technical Specifications
- Frequency Range: 5-2400MHz
- Tap Loss: 8dB ±2.0 to ±3.0 depending on frequency
- Return Loss: ≥10dB across all frequencies
- Mutual Isolation: ≥20dB to ≥22dB depending on frequency
- Mounting: Vertical or horizontal
- Dimensions (H x L x W): 30mm x 120mm x 100mm
- Weight: 0.2 kg
Key Features
- 8dB terminated tap for satellite and terrestrial signals
- Return loss ≥10dB
- Tap loss 8dB
- Frequency range 5-2400MHz
- Can be mounted vertically or horizontally for ease of installation
- High isolation port to port to minimize interference
- Low side loss ideal for end-of-line connections
Professional Installation Requirements
- Installation by a qualified technician is recommended to ensure optimal signal distribution and compliance with safety standards.
Applications
- Satellite TV distribution systems
- MATV (Master Antenna Television) systems
- Terrestrial TV signal distribution
- End-of-line connections in signal distribution networks
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Supports efficient signal distribution reducing energy consumption in signal amplification
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Matchmaster 4 Way 8dB Terminated High Isolation Tap is available now for immediate purchase. Ideal for satellite and terrestrial signal distribution in residential and commercial MATV systems.
