4 Way CATV Tap 14dB | 1GHz | High-Fidelity Signal | Compact Design by Matchmaster
4 way CATV tap with 14dB gain and 1GHz operation—ideal for home entertainment and commercial cable systems. Built for robust signal distribution, with compact design for easy installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

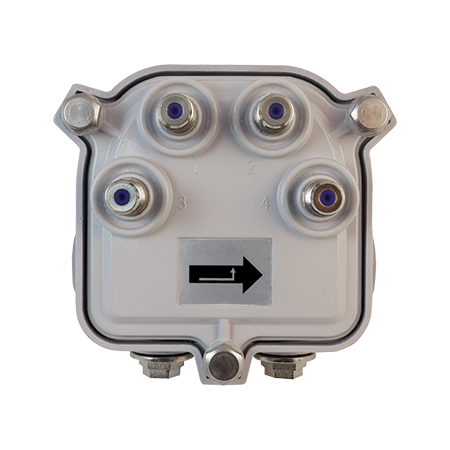

Product Name/Title: 4 Way CATV Tap 14dB 1GHz
Brand: Matchmaster
SKU: 17MM-C414
Alternatively Known As: CATV Signal Splitter, 4 Way Splitter, Cable TV Tap
Technical Specifications
- Input Frequency: 5-1000MHz
- Isolation: 20dB minimum
- Return Loss: 16dB minimum
- Operating Temperature: -10°C to 50°C
- Dimensions (H x L x W): 100mm x 50mm x 150mm
- Weight: 0.3 kg
Key Features
- Distributes CATV signals to up to four outputs.
- 14dB gain ensures strong signal strength.
- Operates up to 1GHz for high-fidelity cable connections.
Professional Installation Requirements
- Professional installation by a licensed technician is recommended for optimal signal distribution.
Applications
- Residential: Home entertainment systems
- Commercial: Offices, retail environments requiring multiple cable connections
- General: Any location needing a robust cable TV distribution system
Standards & Compliance
- Complies with AS/NZS 62052 for safety and performance standards.
Environmental Benefits
- Reduces electronic waste through multi-output functionality.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The 4 Way CATV Tap 14dB 1GHz is available now for immediate purchase. Ideal for residential and commercial use where multiple cable outputs are needed.
