4-Way F-Type Splitter 20dB 5-1000MHZ Matchmaster

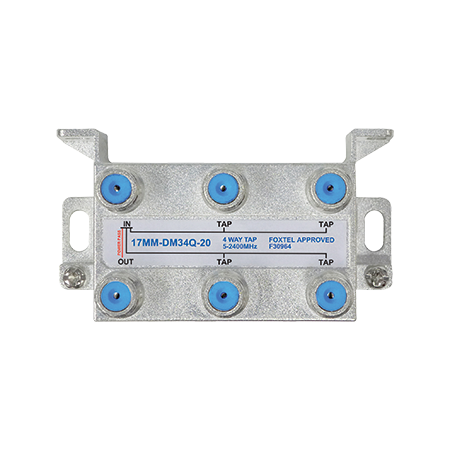

4 way high isolation tap with 20dB isolation and 5-1000 MHz frequency range—ideal for MATV and satellite systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Frequency range: 5-2400MHz
- Insertion Loss (IN-OUT): ≤3.0dB (5-692MHz), ≤3.5dB (692-1000MHz), ≤4.5dB (1000-1500MHz), ≤5.0dB (1500-1860MHz), ≤6.0dB (1860-2400MHz)
- Tap Loss (IN-TAP): 20±2.0dB (5-1500MHz), 20±2.5dB (1500-1860MHz), 20.5±2.5dB (1860-2400MHz)
- Reverse Isolation (OUT-TAP): ≥25dB (5-40MHz), ≥30dB (40-692MHz), ≥28dB (692-1000MHz), ≥25dB (1000-2400MHz)
- Mutual Isolation (TAP-TAP): ≥25dB (5-40MHz), ≥30dB (40-1000MHz), ≥25dB (1000-2400MHz)
- Return Loss (IN/OUT/TAP): ≥10dB across entire frequency range
- Power pass from input to output
- Dimensions (H x L x W): 30mm x 100mm x 80mm
- Weight: 0.2 kg
Key Features
- Pay TV approved F30964
- Return loss ≥10dB
- Tap loss 20dB
- Frequency range 5-2400MHz
- Power pass input to output
- Can be mounted vertical or horizontal for ease of installation
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper signal distribution and compliance with safety standards.
Applications
- Satellite TV distribution
- Terrestrial TV (TDT) connections
- MATV (Master Antenna Television) systems
- Pay TV installations
Standards & Compliance
- Complies with AS/NZS 60035 – Electrical Equipment in Explosive Atmospheres
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing electronic waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Matchmaster 4 Way 20dB High Isolation Tap is available now for immediate purchase. Ideal for satellite, terrestrial, and MATV TV distribution systems.
