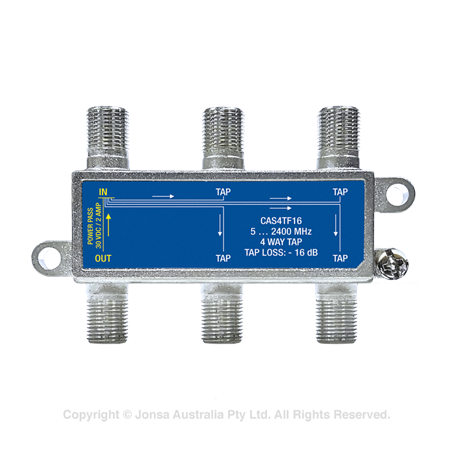

4 Way Signal Tap 16 dB | 5-2400 MHz | 30VDC 2AMP | 75 Ohm by Jonsa
4 way signal tap with 16 dB insertion loss and 5-2400 MHz range—ideal for telecommunications and broadcasting. Built for efficient signal distribution, with 75 Ohm impedance and 30VDC 2AMP power pass.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: TAP 4 WAY 16 dB 5...2400 MHz 30VDC 2AMP
Brand: Jonsa
SKU: CAS4TF16
Alternatively Known As: 4 Way Signal Tap, 16 dB Tap, 75 Ohm Tap
Technical Specifications
- Insertion Loss IN-OUT: 5 … 40 MHz - 12 dB = ≤ 4.2 | - 16 dB = ≤ 2.5 | - 20 dB = ≤ 2.4
- Isolation OUT-TAP: ≥ 30 dB for 5 ... 40 MHz
- Return Loss OUT: ≥ 10 dB for 5 ... 40 MHz
- Housing: Solder Shielded Bottom Plate
- Mounting Screws: ± PM 4 x 18 A3 Nickel-Plated, 2 pcs
- Dimensions (H x L x W): 50mm x 100mm x 100mm
- Weight: 0.5 kg
Key Features
- Insertion Loss: 5 … 40 MHz - 12 dB = ≤ 4.2 | - 16 dB = ≤ 2.5 | - 20 dB = ≤ 2.4
- Isolation TAP-TAP: ≥ 30 dB for 5 ... 40 MHz
- Impedance: 75 Ω
- Power Pass: Output > Input, 30 VDC 2 Amp
Professional Installation Requirements
- Professional installation by a qualified technician is recommended for optimal performance.
Applications
- Telecommunications: Suitable for cable distribution systems.
- Broadcasting: Ideal for signal distribution in broadcasting applications.
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- Efficient signal distribution reduces energy waste in telecommunications systems.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Jonsa TAP 4 WAY 16 dB 5...2400 MHz 30VDC 2AMP is available now for immediate purchase. Ideal for telecommunications and broadcasting applications.
