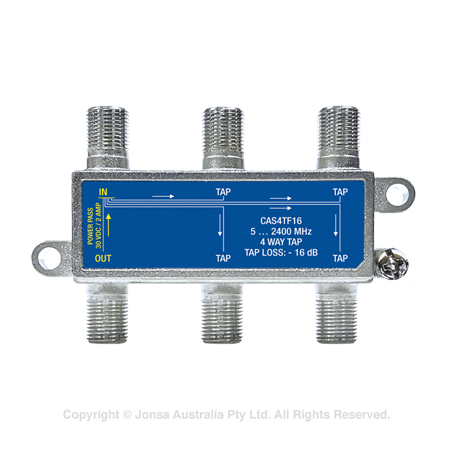

4 Way Signal Tap | 5-2400 MHz | Power Pass 30V 2A | Solder Shielded by Jonsa
4 way signal tap with 5-2400 MHz range and power pass 30V 2A—ideal for telecommunications and broadcasting. Built for optimal signal transmission, with solder shielded bottom plate for enhanced durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: TAP 4 WAY 20 DB, 5...2400 MHz POWER PASS OUT-IN 30V 2A
Brand: Jonsa
SKU: CAS4TF20
Alternatively Known As: 4 Way Splitter, Signal Tap, RF Tap, Coaxial Splitter
Technical Specifications
- Insertion Loss IN-OUT (dB): 5 … 40: -12 dB = ≤ 4.2 | - 16 dB = ≤ 2.5 | - 20 dB = ≤ 2.4
- Isolation TAP-TAP (dB): 5 ... 40: ≥ 30
- Return Loss OUT (dB): 5 ... 40: ≥ 10
- Housing: Solder Shielded Bottom Plate
- Mounting Screws: ± PM 4 x 18 A3 Nickel-Plated, 2 pcs
- Dimensions (H x L x W): 50mm x 100mm x 100mm
- Weight: 0.5 kg
Key Features
- Power pass output > input, 30 VDC 2 Amp.
- 75 Ω impedance for optimal signal transmission.
- Solder shielded bottom plate for enhanced durability.
Professional Installation Requirements
- Professional installation is recommended for optimal performance and safety.
Applications
- Telecommunications: Suitable for cable distribution in residential and commercial settings.
- Broadcasting: Ideal for use in broadcasting and signal distribution systems.
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- Efficient signal distribution reduces energy waste in telecommunications systems.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Jonsa TAP 4 WAY 20 DB is available now for immediate purchase. Ideal for telecommunications and broadcasting applications.
