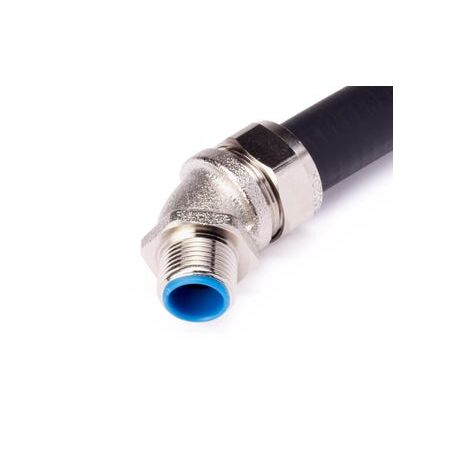

40mm Liquid Tight M40 45 Degree IP66 Nickel-Plated Brass Cabac
Cabac Liquid Tight Conduit Fitting M40 45 Degree External Thread IP66 Rated features nickel-plated brass finish. Suited for AS NZS 2053 conduit installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connector body: Nickel plated brass
- Hexagonal nut: Nickel plated brass
- Sealing ring: Nylon 66
- Ferrule: Galvanised steel
- Thread size: M40 x 1.5
- Conduit size: 40mm
- Ex ta IIIC IP66 Hazardous Area Type Protection
- Certified to IEC60079-0: 2007-10 and IEC60079-31: 2008
- IEC Ex TSA 11.0026 Hazard Area Certification Number
- Dimensions (H x L x W): 81mm x 81mm x 62mm
- Weight: 0.2 kg
Key Features
- Nickel plated brass construction for superior durability
- 45-degree male thread fitting with external thread for threaded entries and knockouts
- Dust proof and liquid tight seal providing mechanical and environmental protection
- High chemical resistance and mechanical strength
- Supplied with sealing ring and flanged grounding cone for excellent pull-out strength
- One-piece installation with swivel on conduit until tightened
Professional Installation Requirements
- Installation should be performed by a qualified professional to ensure compliance with hazardous area standards and proper sealing.
Applications
- Machining centres and robotics
- General wiring for OEM applications
- Low fire hazard applications
- Underfloor wiring in office buildings
- Narrow space static applications
Standards & Compliance
- AS/NZS 60035 – Electrical Equipment in Explosive Atmospheres
Environmental Benefits
- Durable nickel plating extends product life reducing waste
- Provides secure sealing to prevent ingress of dust and moisture, protecting electrical systems and reducing maintenance
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty terms for details.
Available Now
The Cabac Nickel Plated Brass Liquid Tight 45 Degree Fitting M40 is available now for immediate purchase. Ideal for industrial and commercial conduit wiring applications requiring hazardous area protection.
FAQ
Q: What conduit size is this fitting designed for?
A: This fitting is designed for 40mm conduit and features an M40 x 1.5 external thread.
Q: Where is this liquid tight conduit fitting commonly used?
A: It is suitable for machining centres and robotics, OEM wiring, low fire hazard applications, underfloor office wiring, and narrow space static installations.
Pair this fitting with a liquid tight conduit fitting 90 degree for conduit runs requiring a protected change of direction.
Use a liquid tight conduit fitting with straight configuration where conduit entries require direct sealed termination.
Install a liquid tight 90 degree stainless steel fitting where conduit layouts require additional directional flexibility.
