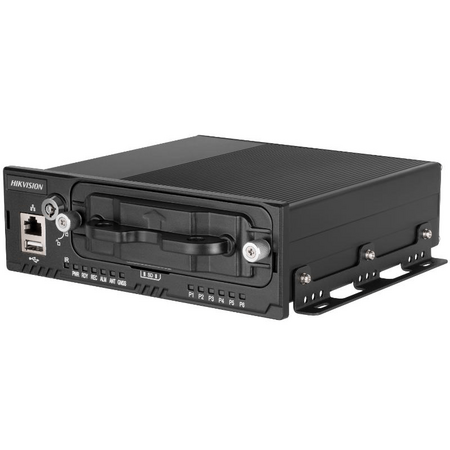

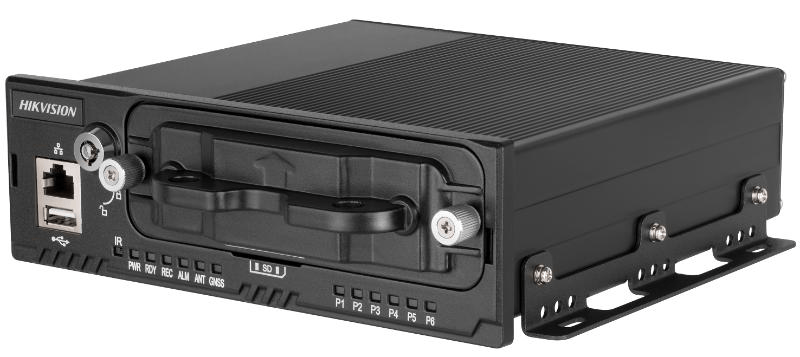

4CH Mobile NVR | PoE Connectivity | 5MP Resolution Support | Built-in GPS | by HIKVISION
The 4CH Mobile NVR is designed for seamless mobile surveillance, featuring PoE connectivity for up to 4 IP cameras and supporting resolutions up to 5MP. Ideal for fleet management and public transport security, this NVR includes a built-in GPS for precise vehicle tracking and a user-friendly GUI for easy operation. Its durable aluminum chassis ensures reliability in harsh environments, making it perfect for law enforcement and emergency vehicles.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 4CH Mobile NVR | PoE Connectivity | 5MP Resolution Support | Built-in GPS | by HIKVISION
Brand: HIKVISION
SKU: AE-MN5043-RJ45
Alternatively Known As: Mobile Network Video Recorder, Vehicle NVR, 4 Channel PoE NVR, Mobile Surveillance Recorder
Technical Specifications
- Dimensions (H x L x W): 60mm x 200mm x 250mm
- Weight: 3.5 kg
Key Features
- 4-channel IP camera connectivity via PoE interfaces with extendable channels via PoE switch
- Supports up to 5MP resolution with H.264/H.265 compression
- Pluggable dummy HDD supporting up to 2TB capacity
- User-friendly GUI for easy and flexible operation
- Pluggable 4G and Wi-Fi modules for flexible data transmission
- Built-in GPS module for precise vehicle positioning and location recording in video streams
- Information collection interfaces for driving data such as turning, braking, and reversing
- Specialized aviation connectors for signal stability
- Shutdown delay and 24-hour scheduled startup/shutdown
- Built-in super-capacitor to prevent damage from sudden power outages
- Wide-range power input from +9 VDC to +32 VDC
- Power-off protection to prevent key data loss
- Aluminum die-cast chassis with fanless design for durability in harsh environments
- Software-based firewall and web browser access
- Support for recording backup on redundant HDD/SSDs
Professional Installation Requirements
- Professional installation by qualified technicians is recommended to ensure proper setup and integration with vehicle systems.
Applications
- Mobile surveillance for vehicles and transportation
- Fleet management and vehicle tracking
- Public transport security
- Mobile law enforcement and emergency vehicles
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Fanless design reduces energy consumption and noise pollution
- Power-off protection minimizes data loss and electronic waste
- Supports efficient H.265 video compression reducing storage and bandwidth usage
Warranty Information
3 years warranty provided by the manufacturer.
Available Now
The HIKVISION MOBILE MN5043 4CH NVR is available for immediate purchase, ideal for mobile surveillance and fleet security applications.
