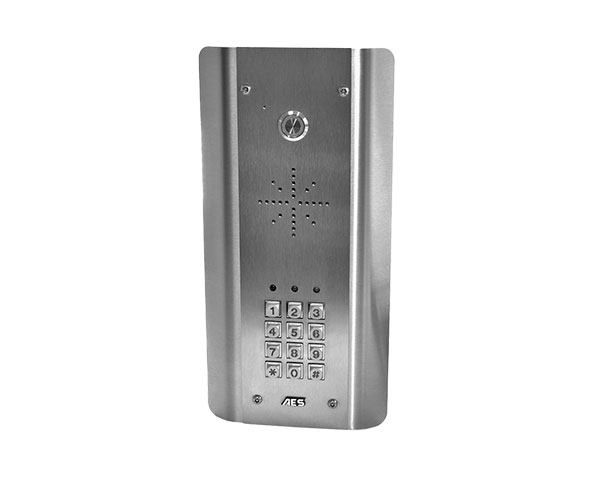

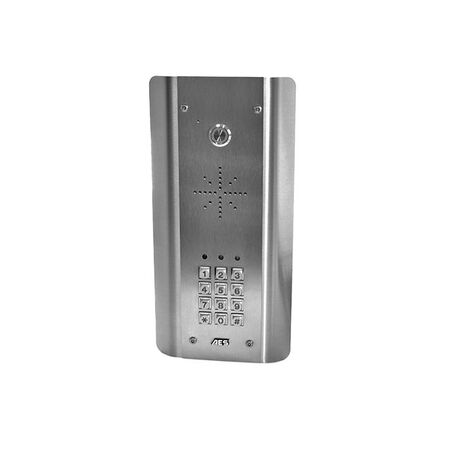

4G Intercom System with Keypad 250 Codes Stainless Steel iCentral
iCentral 4G intercom system features a keypad, 250 codes, caller ID and stainless steel construction. Ideal for gate and door entry intercom installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: iCentral MultiCOM Classic 4G, iCentral 4G Gate Intercom, Multi-Resident GSM Intercom, 4G Access Control Intercom
Technical Specifications
- Manufacturer Part Number: 106-889
- Communication: 4G LTE with VoLTE support
- System Capacity: Up to 1,000 families from one SIM card
- Dial-Out Numbers: Up to 3 phone numbers per family
- Visitor Access: 250 permanent, 250 time-restricted and 50 temporary visitor codes/cards
- Keypad: Illuminated access keypad with programmable codes
- Caller ID: Supported for access control
- Relays: 2 changeover relays
- Relay Load: 2 A, 24 V AC maximum
- Power Supply: 24 V DC, 2 A adaptor included
- Power Consumption: 310 mA during dial-out; up to 2 A peak demand
- Construction: Stainless steel panel
- Programming: USB PC link or Android and iPhone applications
- Network Requirement: Australian 4G SIM with VoLTE support
- Dimensions (H x L x W): 321.5mm x 62mm x 108.5mm
- Weight: 1.5 kg
Key Features
- 4G wireless audio intercom for gates, barriers and doors
- Stainless steel outdoor call panel
- Keypad access control with visitor code management
- Caller ID access control capability
- Remote door or gate release through a mobile phone
- Built-in time clock for scheduled gate or door opening
- Two relay outputs for access control equipment
- Supports up to 1,000 residential families
- Remote programming and management via mobile applications
- Compatible with 4G Australian and New Zealand modem configuration
Professional Installation Requirements
- Installation should be performed by certified and qualified security or gate-automation personnel. The unit requires correct 24 V DC power wiring, earthing where specified, relay integration and configuration of an activated 4G SIM with VoLTE support. Follow the manufacturer’s installation instructions and applicable Australian wiring requirements.
Applications
- Residential apartment and multi-dwelling developments
- Gated communities and strata properties
- Commercial building entry systems
- Vehicle gates, barriers and driveway entrances
- Pedestrian gates and controlled-access doors
- Remote access control installations where fixed telephone cabling is impractical
Standards & Compliance
- AS/NZS 62368.1: Audio/video, information and communication technology equipment safety requirements, applicable to telecommunications and ICT equipment
- AS/NZS 3000: Electrical installations, applicable to the installation of associated mains-powered equipment and wiring
- ACMA telecommunications, radiocommunications and compliance-labelling requirements apply to the 4G cellular equipment; verify the product RCM and supplier declaration before supply or installation
Environmental Benefits
- Durable stainless steel construction can extend service life and reduce replacement waste
- Stainless steel is recyclable at end of service life
- 4G wireless operation can reduce the need for dedicated intercom communication cabling between the gate and residences
- Remote management and scheduled access functions can reduce unnecessary site visits
Warranty Information
iCentral intercom and security products are covered by a three-year warranty against manufacturing defects from the date of purchase, subject to the manufacturer’s warranty terms. Removal, reinstallation, transport and damage from misuse, lightning or power surges may be excluded.
Available Now
Available through iCentral/Ness and authorised Australian security and access-control distributors, subject to distributor stock and current 4G network compatibility.
