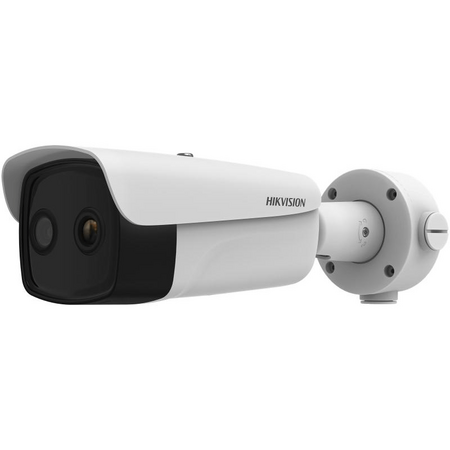

4MP Bi-Spectrum Bullet Camera | 384 x 288 Thermal Resolution | IR Range 40M | by HIKVISION
The 4MP Bi-Spectrum Bullet Camera features a 384 x 288 thermal resolution and an impressive IR range of 40 meters, making it ideal for security surveillance in commercial and industrial settings. With advanced video content analysis for vehicle and human detection, this camera ensures reliable monitoring and early fire detection, providing peace of mind for critical infrastructure.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 4MP Bi-Spectrum Bullet Camera | 384 x 288 Thermal Resolution | IR Range 40M | by HIKVISION
Brand: HIKVISION
SKU: DS-2TD2637T-10-QY
Alternatively Known As: HIKVISION Thermal Bullet Camera, 4MP Bi-Spectrum Security Camera, Heat Pro Thermal Surveillance Camera
Technical Specifications
- Thermal resolution: 384 × 288
- Pixel size: 17 μm
- Detector type: VOx UFPA
- NETD: < 35 mK at 25°C, F1.0
- Temperature measurement range: -20 °C to 550 °C (-4 °F to 1022 °F)
- Temperature accuracy: ± 2 °C or ± 2%
- IR range: 40 meters
- Lens: 9.7mm thermal, 4mm optical
- Image processing: linear, histogram, self-adaptive thermal AGC mode, DDE, 3D DNR
- Video content analysis: vehicle/human classification, smoking detection
- Dimensions (H x L x W): 70mm x 220mm x 90mm
- Weight: 1.5 kg
Key Features
- 384 × 288 resolution thermal sensor with 17 μm VOx UFPA
- NETD < 35 mK at 25°C, F1.0 for high thermal sensitivity
- Video content analysis with vehicle and human classification
- Temperature exception alarm range from -20 °C to 550 °C with ±2 °C or ±2% accuracy
- Smoking detection algorithm integrated
- Advanced image processing including linear, histogram, self-adaptive thermal AGC mode, DDE, and 3D DNR
- High quality detector with a 10-year guarantee
- IR illumination up to 40 meters
Professional Installation Requirements
- Installation by a qualified security system professional or licensed electrician is recommended to ensure proper setup and compliance with safety standards.
Applications
- Security surveillance for commercial and industrial sites
- Fire prevention monitoring
- Vehicle and human detection in outdoor environments
- Temperature anomaly detection in critical infrastructure
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Enables early fire detection reducing environmental damage
- Supports energy-efficient monitoring with advanced thermal imaging technology
Warranty Information
5 years warranty provided by the manufacturer.
Available Now
The HIKVISION HEAT PRO 2TD2637T-10-QY 4MP Bi-Spectrum Bullet Camera is available for immediate purchase, ideal for advanced security and fire prevention applications.
