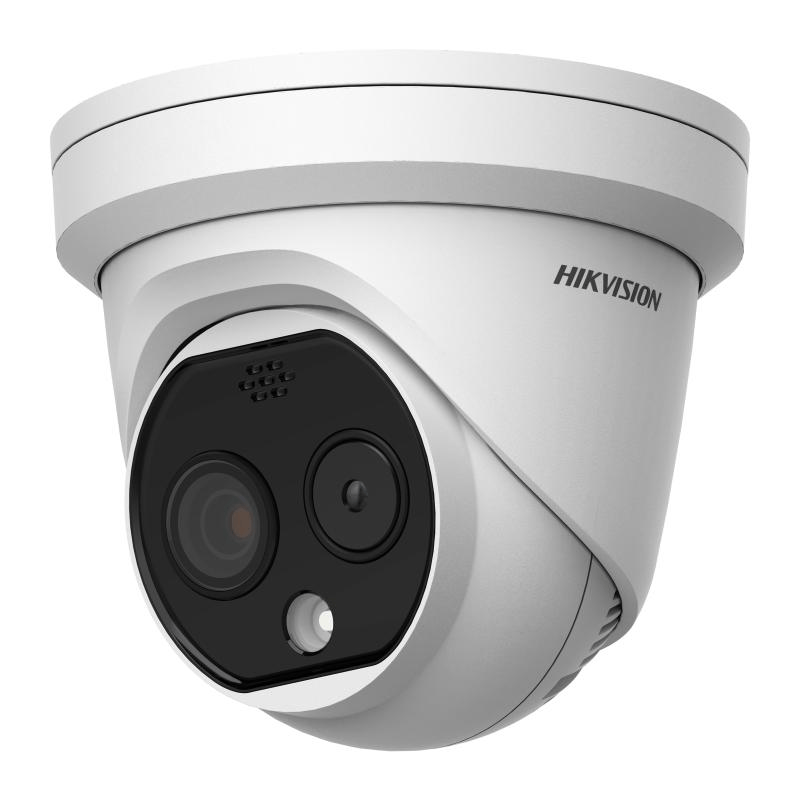

4MP Bi-Spectrum Turret Camera | 256 x 192 Resolution | IR 15M | by HIKVISION
The 4MP Bi-Spectrum Turret Camera offers exceptional 256 x 192 thermal resolution and IR illumination up to 15 meters, making it ideal for security and fire prevention monitoring. With advanced features like vehicle and human detection, this camera is built for commercial and industrial applications, ensuring reliable performance and enhanced safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 4MP Bi-Spectrum Turret Camera | 256 x 192 Resolution | IR 15M | by HIKVISION
Brand: HIKVISION
SKU: DS-2TD1228-2-QA
Alternatively Known As: HIKVISION Thermal Bi-Spectrum Camera, 4MP Thermal Turret Camera, DS-2TD1228-2-QA
Technical Specifications
- Thermal resolution: 256 × 192
- Pixel size: 12 μm
- Detector type: VOx UFPA
- NETD: < 40 mK at 25°C, F1.0
- Temperature measurement range: -20°C to 150°C (-4°F to 302°F)
- Temperature accuracy: ± 8°C (± 14.4°F)
- Image processing: linear, histogram, self-adaptive thermal AGC mode, DDE, 3D DNR
- IR range: 15 meters
- Video content analysis: vehicle/human classification
- Additional features: smoking detection algorithm, sun-reflection filter
- Dimensions (H x L x W): 85mm x 150mm x 90mm
- Weight: 1.5 kg
Key Features
- 256 × 192 resolution thermal sensor with 12 μm VOx UFPA
- NETD < 40 mK (25°C, F1.0) for high thermal sensitivity
- Video content analysis with vehicle and human classification
- Temperature exception alarm for fire prevention from -20°C to 150°C with ±8°C accuracy
- Image processing technologies including linear, histogram, self-adaptive thermal AGC mode, DDE, and 3D DNR
- High quality detector with a 10-year guarantee
- Supports smoking detection algorithm
- Sun-reflection filter support
- IR illumination up to 15 meters
Professional Installation Requirements
- Professional installation by a qualified security systems technician is recommended to ensure optimal performance and compliance with safety standards.
Applications
- Security and surveillance for commercial and industrial sites
- Fire prevention monitoring
- Vehicle and human detection in restricted areas
- Perimeter security and access control
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Enhanced fire prevention reduces environmental damage from fires
- Energy-efficient thermal imaging technology lowers power consumption
Warranty Information
3 years warranty provided by the manufacturer.
Available Now
The HIKVISION HEAT PRO 2TD1228-2 4MP Bi-Spectrum Turret Camera is available for immediate purchase, ideal for advanced security and fire prevention applications.
