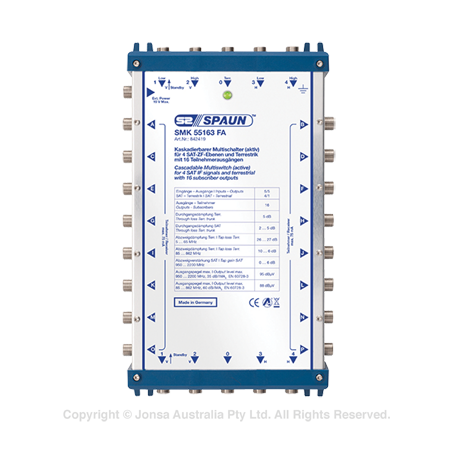

5 Wire Cascade Multiswitch 16 Outputs | Active Amplification | Remote Voltage Control by Jonsa
5 wire cascade multiswitch with 16 outputs and active amplification—ideal for commercial and residential satellite distribution systems. Built for efficient signal distribution, with remote voltage control and LED operation display.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: MULTISWITCH, 5 WIRE CASCADE 16 OUTPUTS ACTIVE
Brand: Jonsa
SKU: DS/SMK55163FA
Alternatively Known As: Satellite Multiswitch, Cascadable Multiswitch, 16 Output Multiswitch
Technical Specifications
- Inputs / Outputs SAT-IF / TERR-RF: 5 / 5, 4 / 1
- Outputs / Subscribers: 16
- Through Loss TERR-RF: 5 dB
- Through Loss SAT-IF: 2 ... 6 dB
- Tap Loss TERR-RF 5 ... 65 MHz: 26 ... 27 dB
- Tap Loss TERR-RF 85 ... 862 MHz: 10 ... 6 dB
- Tap Gain SAT-IF 950 ... 2200 MHz: 0 ... 6 dB
- Max Output Level TERR-RF 85...862 MHz, 60 dB IMA3 / EN 60728-3: 88 dBμV
- Max Output Level SAT-IF 950...2200 MHz, 35 dB IMA3 / EN 60728-3: 95 dBμV
- Switching Isolation: ≥ 30 dB
- Isolation Trunk line / Trunk line: > 30 dB
- Isolation Receiver / Receiver: ≥ 30 dB
- Current per Trunk line 0, 2, 3 & 4: 1 A
- Current Consumption for Each Receiver Max: 75 mA
- Ambient Temperature: - 20 ... + 50 °C
- Dimensions (H x L x W): 40mm x 265mm x 130mm
- Weight: 1.5 kg
Key Features
- Amplifies SAT-IF and TERR-RF signals.
- Remote voltage controlled SAT-IF polarity selection.
- DC jack for remote power.
- LED operation display.
- Supports up to six Multiswitches with the Power Inserter.
Professional Installation Requirements
- Professional installation by a qualified technician is recommended for optimal performance.
Applications
- Commercial: Satellite distribution systems in buildings
- Residential: Home satellite TV installations
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- Efficient signal amplification reduces energy consumption.
- Supports sustainable satellite TV installations.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Jonsa Multiswitch, 5 Wire Cascade 16 Outputs Active is available now for immediate purchase. Ideal for commercial and residential satellite distribution systems.
