5 Wire Cascade Tap 10dB | Easy Installation | Remote Power | Jonsa
5 wire cascade tap with 10dB attenuation—ideal for major distribution networks. Built for easy installation and remote power to amplifiers, reducing installation costs and waste.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

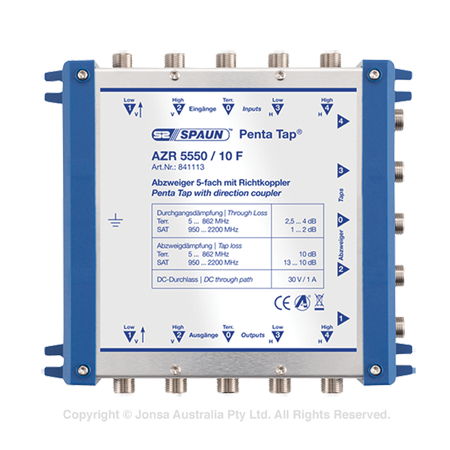

Product Name/Title: TAP 1 WAY 5 WIRE CASCADE 10DB
Brand: Jonsa
SKU: DS/AZR5550/10F
Alternatively Known As: 5 Wire Cascade Tap, Distribution Network Tap
Technical Specifications
- Inputs SAT-IF / TERR-RF: 4 / 1
- Outputs SAT-IF / TERR-RF: 4 / 1 + 4 / 1
- SAT-IF: 1 ... 2 dB
- Isolation Trunk line / Trunk line: 26 dB
- Isolation Trunk line / Tap: 26 dB
- Isolation Tap / Tap: 26 dB
- Max DC-through: 30 V / 1 A
- Ambient Temperature: -20 ... +50 °C
- Dimensions (H x L x W): 130mm x 39mm x 145mm
- Weight: 0.5 kg
Key Features
- Installation expenditure of major distribution networks can be reduced substantially.
- Easy installation of just one device instead of five.
- Trunk line DC path linked to tap outlets for remote power to amplifiers.
Professional Installation Requirements
- Professional installation by a qualified technician is recommended for optimal performance.
Applications
- Commercial: Major distribution networks for amplifiers
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- Reduced installation waste by minimizing the number of devices needed.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The TAP 1 WAY 5 WIRE CASCADE 10DB is available now for immediate purchase. Ideal for commercial applications in distribution networks.
