Trade Discount 23%
5 Wire Cascade Tap 20dB | Easy Installation | Amplifier Power | Jonsa
5 wire cascade tap with 20dB gain and easy installation—ideal for major distribution networks. Built for commercial use, with remote power capability for amplifiers.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

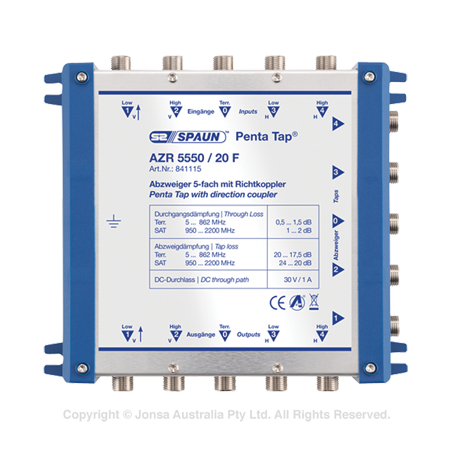

Product Name/Title: TAP 1 WAY 5 WIRE CASCADE 20DB
Brand: Jonsa
SKU: DS/AZR5550/20F
Alternatively Known As: 5 Wire Cascade Tap, Distribution Tap, Amplifier Power Tap
Technical Specifications
- Inputs SAT-IF / TERR-RF: 4 / 1
- Outputs SAT-IF / TERR-RF: 4 / 1 + 4 / 1
- SAT-IF: 1 ... 2 dB
- Isolation Trunk line / Trunk line: 26 dB
- Isolation Trunk line / Tap: 26 dB
- Isolation Tap / Tap: 26 dB
- Max DC-through: 30 V / 1 A
- Ambient Temperature: -20 ... +50 °C
- Dimensions (H x L x W): 130mm x 39mm x 145mm
- Weight: 0.5 kg
Key Features
- Installation expenditure of major distribution networks can be reduced substantially.
- Easy installation of just one device instead of five.
- Trunk line DC path linked to tap outlets for remote power to amplifiers.
Professional Installation Requirements
- Professional installation by a qualified technician is recommended for optimal performance.
Applications
- Commercial: Major distribution networks, amplifiers
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- Reduced installation waste by minimizing the number of devices needed.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The TAP 1 WAY 5 WIRE CASCADE 20DB is available now for immediate purchase. Ideal for commercial applications in major distribution networks.
