5 Wire Multiswitch 5 In 32 Out | Remote Powered | 950-2400 MHz | Matchmaster
5 wire multiswitch with 5 inputs and 32 outputs—ideal for residential and commercial signal distribution. Built for flexible installation, with remote power and support for satellite and terrestrial signals.
Sign in
Please login to continue to your account.

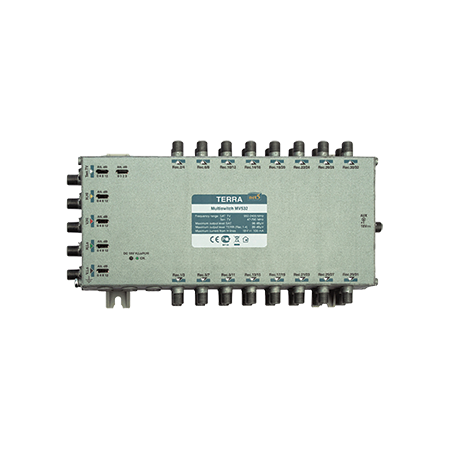

Product Name/Title: TERRA 5 Wire Multiswitch 5 In 32 Out Remote Powered
Brand: Matchmaster
SKU: 21MM-MV532
Alternatively Known As: 5x32 Multiswitch, Satellite Multiswitch, Remote Powered Multiswitch
- Input Frequency: 950-2400 MHz
- Power Supply: 12V DC remote powering
- Output Impedance: 75 Ohm
- Isolation: >25 dB between inputs
- Insertion Loss: <5 dB
- Dimensions: 350mm x 250mm x 44mm
- Dimensions (H x L x W): 44mm x 250mm x 350mm
- Weight: 3.0 kg
- Supports distribution of satellite and terrestrial signals.
- Remote powered for flexible installation.
- Allows connection of multiple satellite receivers.
- Professional installation is recommended to ensure optimal setup and performance.
- Residential: Multi-room audio and video distribution
- Commercial: Hotels, apartments, and large buildings requiring extensive signal distribution
- General: Any installation needing multiple satellite or antenna signals to be distributed
- Complies with AS/NZS 4251 for safety and performance standards.
- Efficient use of materials in construction minimizes environmental impact.
1 year warranty against manufacturing defects.
The TERRA 5 Wire Multiswitch 5 In 32 Out Remote Powered is available now for immediate purchase. Ideal for residential and commercial signal distribution needs.
