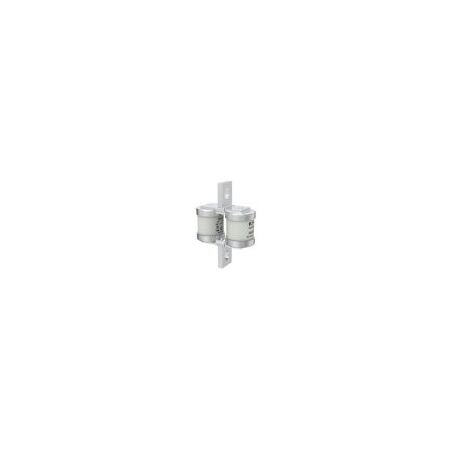

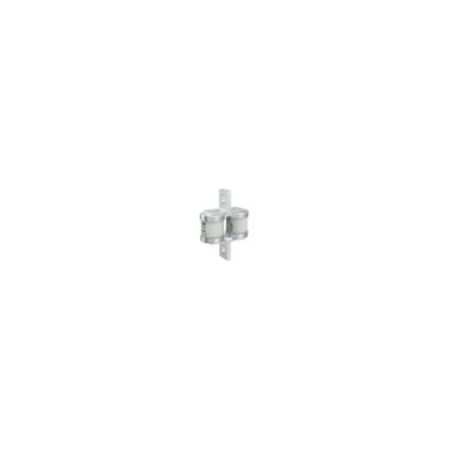

Product Name/Title: 500A 690V AC Type T Fuse | High Speed | Double Barrel Design | Class aR by Eaton
Brand: Eaton
SKU: 500FMM
Alternatively Known As: 500A High Speed Fuse, 690V AC Fuse, Type T Fuse, Eaton Bussmann Fuse, Semiconductor Protection Fuse
Technical Specifications
- Amperage Rating: 500 A
- Voltage Rating: 690 V AC / 450 V DC
- Breaking Capacity: 200 kA RMS Symmetrical (AC), 40 kA at 450 V DC
- Fuse Type: FMM
- Class: aR (accompanied semiconductor protection)
- Rated Switching Capacity: 200 kA
- Fuse Shape: Center dual barrel bolted tags
- Mounting Method: Stud
- Connection: Blade end x blade end
- Watt Losses: 100 W
- Clearing (I2T): 82000
- Pre arc (I2T): 20000
- Fuse Indicator: None
- Insulated Metal Gripping Lugs: No
- Dimensions (H x L x W): 38mm x 112mm x 83mm
- Weight: 0.452 kg
Key Features
- High speed British standard fuse
- Double barrel design
- Class aR for semiconductor protection
- Breaking capacity of 200 kA RMS Symmetrical (AC)
- 40 kA DC breaking capacity at 450 VDC
- Rated voltage: 690 V AC / 450 V DC
- Blade end x blade end connection
- Stud mounting method
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with safety standards and proper fuse operation.
Applications
- Semiconductor protection
- DC Common bus
- DC drives
- Power converters/rectifiers
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS compliant, reducing hazardous substances in electrical components
- CE marked ensuring compliance with European environmental and safety standards
Warranty Information
Standard Eaton warranty against manufacturing defects applies.
Available Now
The Eaton 500A 690V AC Type T Fuse is available for immediate purchase, ideal for industrial semiconductor and power conversion applications.
